Falcon 8200 Series Low Energy Operators

Introduction

Falcon 8200 Series electromechanical door operators are designed for low-energy, automated swinging doors that must balance user convenience, accessibility, and safety. These surface‑mounted operators are ideal for assisted living, small offices, retail, restaurants, and ambulatory care facilities that need dependable automatic operation without the complexity of a full high‑energy system.

Key Features

• Low energy electromechanical operator for hinged, center‑pivoted, or offset‑pivoted doors, operating as an automatic opener when activated and as a Size 3 manual closer during power loss.​
• Surface‑mounted 26" header with non‑handed design, supporting doors up to approximately 200 lbs in aluminum‑painted 689 finish for a clean appearance.
• On‑board 12 VAC power supply capable of powering actuators, receivers, and certain low‑power locking devices without an external power supply.
• Adjustable features include opening speed, closing speed, backcheck speed and position, latch position, and 1–15 second hold‑open time delay for fine‑tuned performance.
• SmartLatch and pre‑load strike assist technology that helps the door overcome latch and gasket resistance, improving closing reliability.
• Push ‘n Go function (selectable) that opens the door automatically when it is pushed a few degrees, enhancing ease of use.

Key Benefits

• Improves accessibility and ADA compliance by providing powered opening for users with mobility challenges, wheelchairs, or strollers.
• Simplifies installation and integration through a surface‑mounted, non‑handed design with built‑in power for activation devices, reducing additional components and wiring.
• Increases user comfort and safety with adjustable speeds, backcheck, and latch control that prevent slamming and allow gentle, controlled operation.​
• Enhances reliability in real‑world conditions with SmartLatch and pre‑load strike assist to close doors consistently against air pressure, seals, or misaligned latches.
• Reduces total cost of ownership by combining durable electromechanical hardware with flexible adjustment and long cycle life suitable for everyday traffic.

Applications

• Assisted living and senior housing entrances, unit doors, and common areas where residents benefit from push‑button or Push ’n Go operation.
• Healthcare and ambulatory care facilities that require easy, low‑energy access to exam rooms, corridors, and waiting areas.
• Retail stores, small offices, and restaurants where ADA‑compliant access and user convenience are important on main or side entrances.
• Multifamily and mixed‑use buildings for amenity doors, lobby entrances, or interior passages that need automatic operation without high‑energy swing speeds.

Popular Falcon 8200 Series Low Energy Operators

• Falcon 8231‑689 Electromechanical Door Operator, Slide Track Arm, Pull Side Mounted: The Falcon 8231‑689 is a surface‑mounted, low-energy door operator with a slide track arm for pull side installations. Non‑handed and finished in aluminum (689), it is well-suited for interior doors in assisted living, offices, and clinics where a slide track is preferred for aesthetics and reduced projection while still delivering smooth, ADA‑compliant automatic operation.

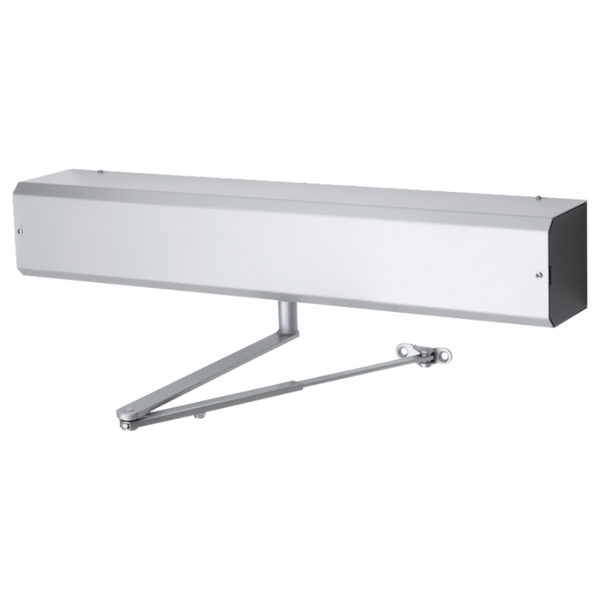

• Falcon 8242‑689 Surface Mounted Electromechanical Door Operator, Regular Arm, Push Side Mounted: The Falcon 8242‑689 is a surface‑mounted automatic door operator with a regular arm for push side mounting, non‑handed, in an aluminum‑painted finish. Designed for low-energy applications, it offers adjustable hold‑open time, opening/closing speeds, and backcheck, making it a strong choice for corridor and entrance doors that require push‑side installation and reliable automatic performance.

With fast availability of in‑stock Falcon 8231 and 8242 operators, competitive pricing, and knowledgeable technical support, QualityDoor.com helps contractors, facility managers, and integrators choose the right low-energy operator, arm type, and mounting configuration for each opening. Customers rely on QualityDoor.com for genuine Falcon hardware and expert guidance that keeps entrances accessible, code‑compliant, and dependable across healthcare, assisted living, retail, and commercial office projects.
