Description

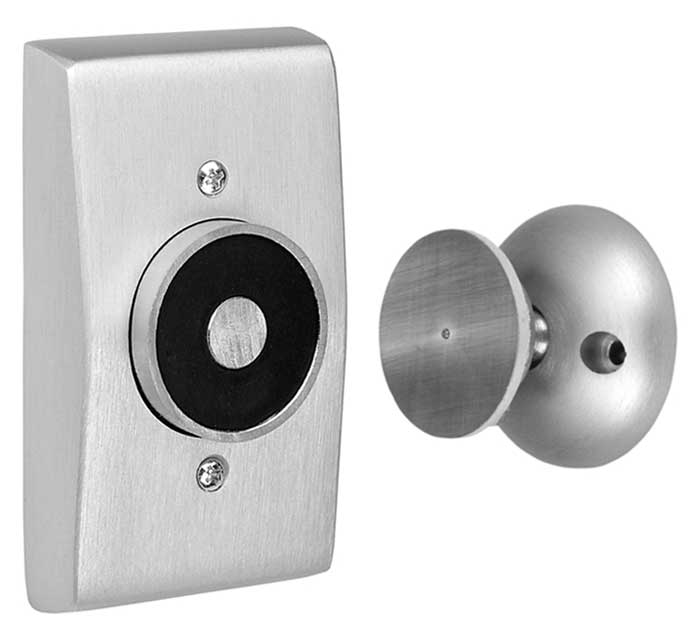

ABH 2100 US28 Electromagnetic Door Holder Recessed Wall Mount with Standard Armature, Sprayed Aluminum
- 2-5/8" total projection from wall to face of the door (3-5/8" if using complimentary 1" extension)
- Tri-voltage units for easy stocking and installation 12V DC, 24V AC/DC OR 120V AC
- Provided with one complimentary 1" extension - No charge
- Optional extension rods fill the gap between the magnet and door armature with no special adapter piece required
- 35 lb. holding force All metal components
- No plastic parts UL/ULC listed for smoke barrier or labeled fire doors
- Listed by the California State Fire Marshall
- Outlet box required (not provided) Armature
- Features two pivot points which each has 360° mobility to help door alignment and reduce installation time Positive release button alleviates residual magnetism
- Average with per unit = 2.5 lbs.
