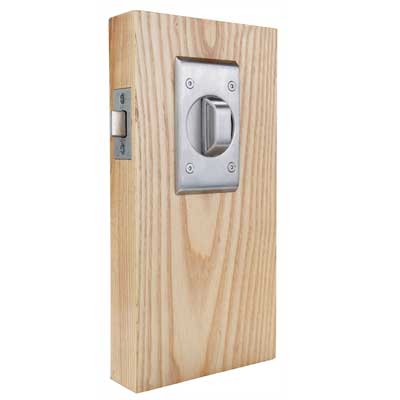

ABH 622 A B US32D AB is a Hospital Cylindrical Latches with "B" Round Asylum Trim on both sides of the door in lieu of standard hospital push/pull trim. The ABH 622ABUS32DAB comes with a 2-3/4" backset in a US32D Satin Stainless Steel finish.

• Cylindrical latch application - passage function
• 1-3/4" standard door thickness (specify if different)
• Meets ADA requirements
• The trim is mounted using four thru-bolts for maximum stability
• One continuous spring provides smoother operation and extended life for the unit
• Non-handed for installation and stocking ease
• Trim can be mounted vertically or horizontally (with handles pointing toward the hinge edge of the door)
• Handles can be mounted up or down by simply rotating the trim 180 °
• UL Listed in the U.S.A. and Canada for use on door fire rated 90 minutes or less, up to 4'0" x 8'0"
• 1/2" Latch Bolt Throw
• Average weight per unit = 5 lbs
• Patent# 6,196,599 & Additional Patent Pending
