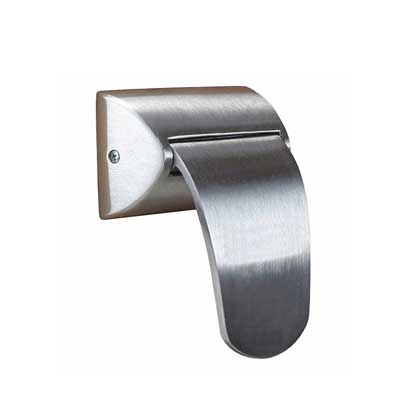

ABH LR6000 5 A US32D Ligature Resistant Cylindrical Latches 5" Backset, Satin Stainless Steel
ABH LR6000 5 A US32D Ligature Resistant Cylindrical Latches 5" Backset, Satin Stainless Steel Non-handed for installation. The LR6000 5 A US32D Trim can be mounted vertically or horizontal (with handles pointing toward the hinge edge of the door) 1- ¾" standard door thickness (specify if different) Meets ADA requirements. The Trim is mounted using four thru-bolts for maximum stability.
- The new ligature-resistant design provides a sleek look as well as functionality not commonly found in push/pull trim
- Cylindrical latch application - passage function
- 1-3/4" standard door thickness (specify if different)
- Meets ADA requirements
- The trim is mounted using four thru-bolts for maximum stability
- One continuous spring provides smoother operation and extended life for the unit
- Non-handed for installation and stocking ease
- Trim can be mounted vertically or horizontal (with handles pointing toward the hinge edge of the door)
- Handles can be mounted up or down by simply rotating the trim 180 °
- UL Listed in the U.S.A. and Canada for use on door fire rated 90 minutes or less, up to 4'0" x 8'0"
- 1/2" Latch Bolt Throw
- Average weight per unit = 6 lbs
- Patent# 7,258,374 & Additional Patents Pending
