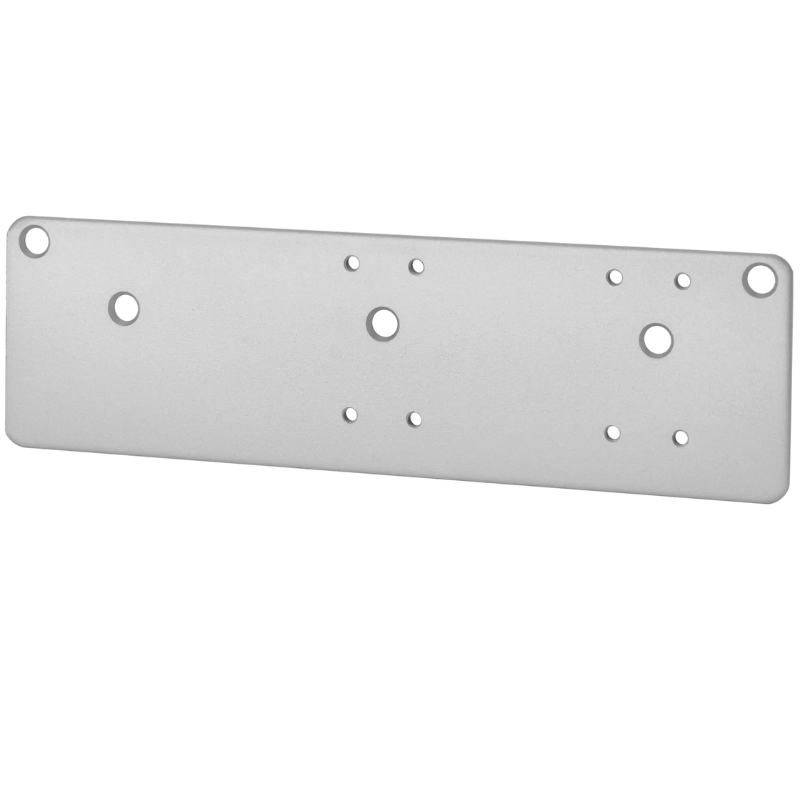

Accentra (Yale) 5800RDP Narrow Frame Drop Plate, Regular Arm, For 5800 Series Door Closer

The Accentra (Yale) 5800RDP Narrow Frame Drop Plate is a mounting accessory designed to adapt the 5800 Series door closer for installation on narrow top rails and frames where standard mounting space is limited. Built for regular arm applications, this drop plate lowers the closer's mounting position to accommodate doors and frames that cannot support direct installation. Constructed to match the durability of the 5800 Series line, it provides a secure, factory-engineered fit that keeps the closer properly aligned for reliable operation. For facility managers and installers, it's a straightforward solution to common clearance challenges in commercial door applications.

Features

• Drop plate accessory engineered specifically for the Accentra (Yale) 5800 Series door closer.
• Designed for narrow frame and narrow top rail installations where space is restricted.
• Supports regular arm closer configurations.
• Provides a secure mounting surface that maintains correct closer alignment.
• Factory-matched to the 5800 Series for consistent fit and finish.

Functional Details

The drop plate repositions the door closer lower on the frame or door, creating the necessary mounting area on narrow surfaces that would otherwise be unable to accept the closer body. This allows the 5800 Series closer to function as intended on doors with limited top rail clearance.
