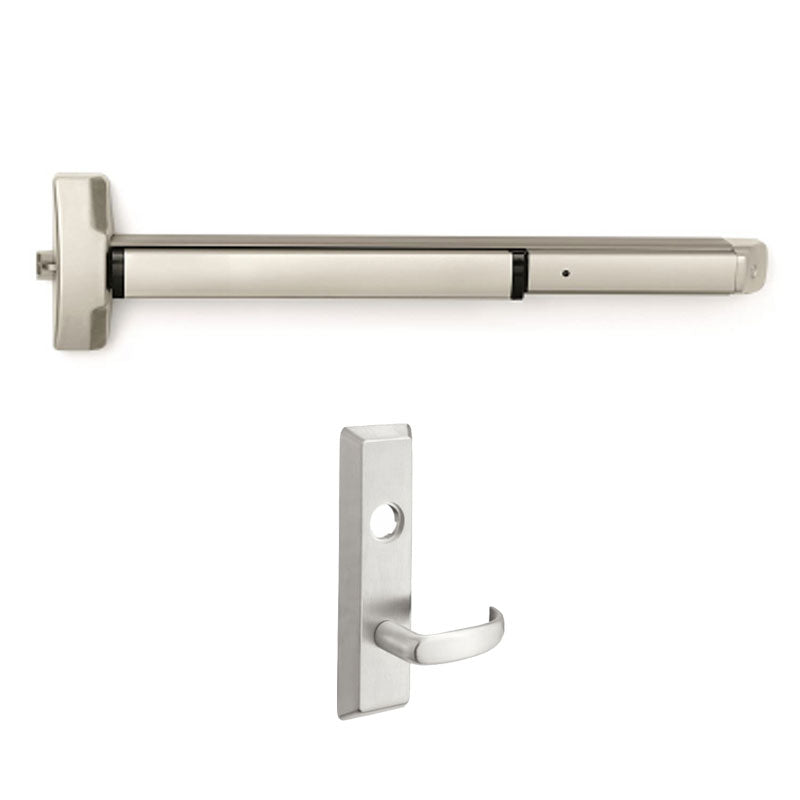

Accentra 6100F-P-36-PB627-630-LC is a  36" Fire Rated Rim Exit Device with Electric Latch Retraction comes with a PB627 PB Lever Escutcheon in Nightlatch Function, Sold Less Cylinder in US32D Satin Stainless Steel Finish. The Accentra 6100F-P-36-PB627-630-LC is handed and has No Dogging. The 36" bar works for doors 33"-36" wide.

Electric Latch Retraction P how it works

Allows the latch bolt to be retracted electrically for momentary or maintained periods of time from a remote location. The exit device bolt remains retracted for as long as the device is energized. Removal of power returns the device to live safely, self-latching mechanical mode. Easy interface with central or local fire alarm systems, automatic door operators, hands-free actuation devices, and access control systems. Allows free egress at all times.

Electrical Specifications

Electrical Specifications Solenoid Assembly • Continuous duty • 9 amp inrush • Requires a 4-wire minimum pivot or hinge to transfer power from frame to door. • Requires the 782 controllers for operation (USING ANY OTHER POW

For use with:

6100EDP Latch Retraction, 782 Controller, Automatic Door Operator by Norton, ADA Pushbuttons by Norton, 700 Wave to Open Switches by Norton, QC8 Power Transfer Hinge by McKinney®

The operation

The exit device allows free egress at all times, Activating the interior or exterior pushbutton retracts the latch bolt in the device and the door automatically opens. The door closes and relatches after the hold open time has elapsed in the operator.
