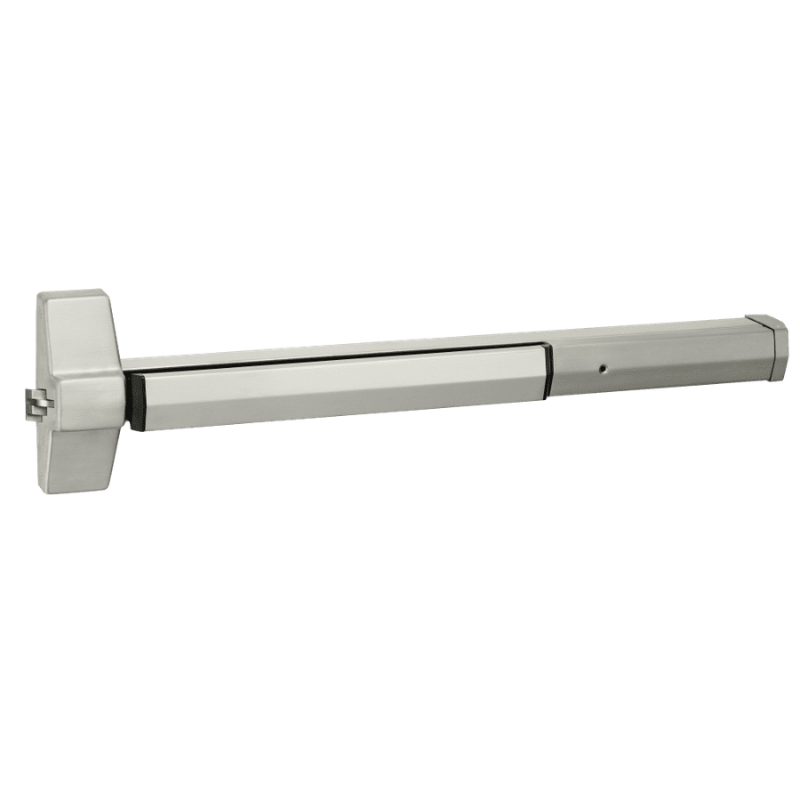

Accentra (Yale) 7100-5CH-36-630 Accentra (Yale) 7100-36-630 Rim Exit Device, Exit Only Wide Stile Pushpad, 30-36" Device, Less Trim, Hex Key Dogging, "5CH" 5Lb Pressure Release, Grade 1, Reversible, US32D Satin Stainless Steel Finish

The Accentra (Yale) 7100-5CH-36 Rim Exit Device delivers dependable, code-compliant egress for high-traffic commercial openings. This Grade 1 rim device features a wide stile pushpad built for doors ranging from 30 to 36 inches wide, making it a versatile choice for schools, offices, and institutional buildings. It comes configured as exit only (less trim) with hex key dogging to hold the latch retracted for push/pull operation during business hours. The standout "5CH" option provides a low 5 lb pressure release, ideal for accessibility and ease of use. Finished in US32D (630) satin stainless steel, it's reversible for field-adjustable handing and designed for long-term durability.

Features

• Grade 1 rim exit device engineered for demanding commercial applications.
• Wide stile pushpad design suited for aluminum and hollow metal doors.
• Fits door widths from 30 to 36 inches.
• Exit only configuration, supplied less trim.
• Hex key dogging allows the pushpad to be held down for free operation.
• Reversible handing for flexible installation.
• Satin stainless steel (US32D / 630) finish resists wear and corrosion.

Functional Details

The "5CH" 5 lb pressure release option reduces the force needed to operate the pushpad, improving accessibility while maintaining secure latching. Hex key dogging lets authorized staff retract and hold the latch for continuous push/pull use during open hours.

• Rim exit device for use with surface strike.
• Hex key dogging holds latch bolt retracted.
• 5 lb maximum pressure release.

Included Components

Device ships as an exit-only unit less trim, including the chassis, pushpad rail assembly, and mounting hardware for standard rim installation.
