All Accentra Products
Technical Specs
| Function | 18- Intruder Classroom |
| Function Family | Intruder Classroom |
| Lever/Knob Design | AU Augusta Lever |
| Lever/Knob Design Family | Straight Return Lever |
| Rose/Escutcheon Design |
3 1/2" Rose Diameter |
| Rose/Escutcheon Dimensions | 3 1/2" |
| Cylinder Type |
Conventional Cylinder |
| Num Pins | 6 |
| Std. Keyway | Schlage "C" |
| Key(s) | Cut |
| Num of Keys | 2 |
| Handing | Non-Handed |
| Door Thickness | 1 3/4" to 2" |
| Std. Latch Number | 694 |
| Std. Latch Type | Beveled Dead Latch (Guarded) |
| Std. Latch Backset Dim | 2 3/4" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 1 1/8" x 2 1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2 1/8" |
| Std. Strike Number | 497 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4 7/8" |
| Std. Strike Width | 1 1/4" |
| Product Type | Cylindrical Lock |
Product Specs
| Manufacturer | Accentra |
| SKU | AU4718LN 626 |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | United States |
| Unit of Measure | Each |
| Base Material | Brass, Bronze |
| UL Listing Type | UL Listed |
| ANSI Number | ANSI A156.2, Series 4000, Grade 1 |
| Limited Warranty | 5 Years |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| Finish | 626/US26D |
| Finish Description | Satin Chrome |
| Finish Family | Matte Silver |

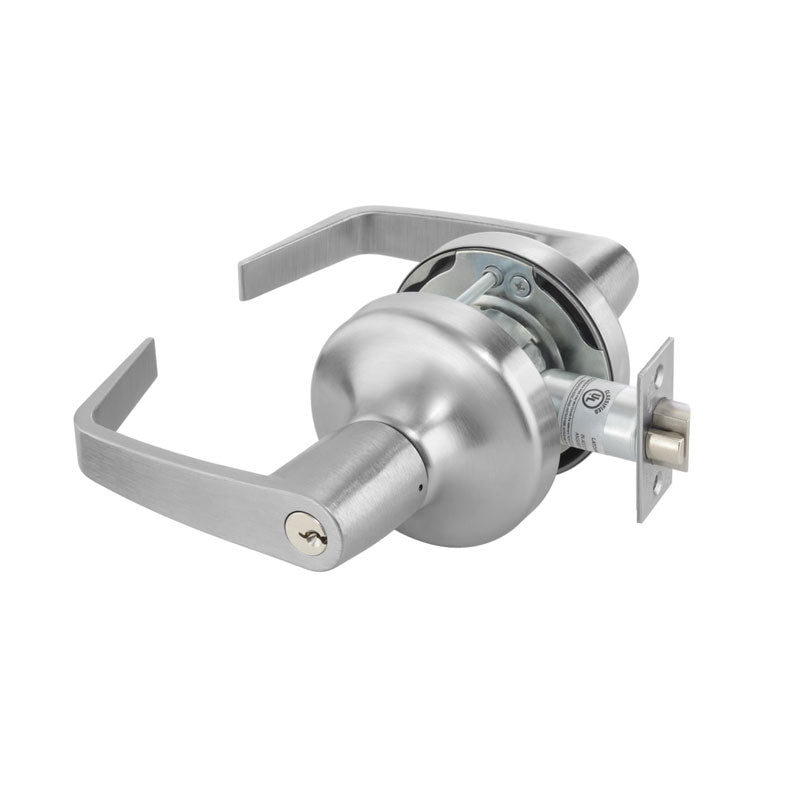

The Accentra (Formerly Yale) AU-4718LN-626-SC-KD Accentra Intruder Classroom Lever Lockset has a AU Lever, a Schlage "C" Keyway that is Keyed Different with [2] Keys, is Grade 2, and comes in 626 Satin Chromium Plated Finish.
