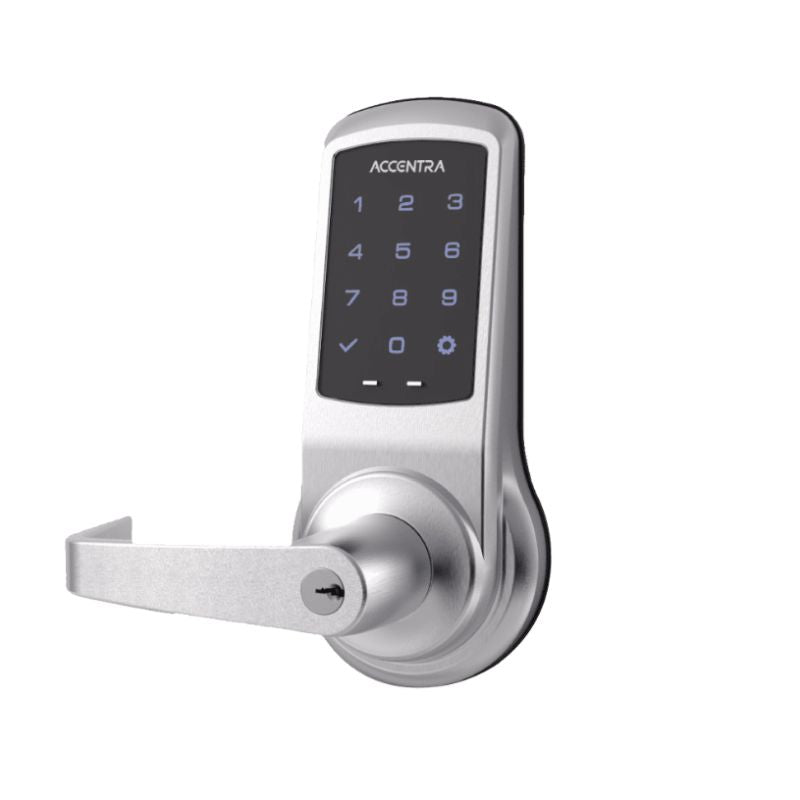

Accentra (Yale) AU-NTB623-NR Nextouch Capacitive Touchscreen Cylindrical Lock, PARA Keyway

  • SKU: AUNTB623NR626

Accentra (Yale) AU-NTB623-NR Nextouch Capacitive Touchscreen Cylindrical Lock, PARA Keyway

  • SKU: AUNTB623NR626
Sale price$924.00/ea
In Stock
In Stock
Finish: US26D-626 Satin Chrome

Accentra(Formerly by Yale) AU-NTB623-NR-BSP NexTouch Cylindrical Lock with Keypad Trim, Augusta Lever, Cylinder Override, Stand Alone Capacitive Touchscreen, PARA Keyway Keyed Random, [2] Keys, Grade 1, Black Suede Powder Coat

The Accentra nexTouch NTB623 provides easy and secure keyless PIN code door access for your small businesses. Equipped with a backlit touchscreen keypad, lockout mode and more. Future-proof modular technology allows for upgrades as needs and technology expand.

  • Backlit capacitive touchscreen keypad
  • Designed for small business applications
  • Seamlessly retrofits mechanical cylindrical locks for easy upgrade to access control
  • Free-wheeling lever style resistant to vandalism
  • Up to 25 user codes in keypad-only operation
  • Easy to install; standard door prep, 2 1/8″ cross-bore, 1″ edge bore
  • Standard 2 3/4" backset, 2 3/8" latch bolt replacement available
  • Augusta lever and Satin Chrome finish standard, additional options available via special order
  • Reduces cost of re-keying
  • Voice prompted programming
  • Privacy mode to lockout keypad entry
  • 9V battery back-up

With Cylinder Override

  • For doors that require a mechanical key override.
  • Latchbolt retracted by lever outside with valid PIN code; by use of a mechanical key, or by operating lever inside.
  • The inside lever is always active.
  • Deadlocking latch bolt.
Manufacturer Accentra
SKU AU-NTB623-NR
Grade Grade 1
Installation Commercial
Origin
Unit of Measure Each
Application Capacitive Touchscreen
UL Listing Type UL/cUL, 3 Hours
ANSI Number ANSI/BHMA A156.2, Series 4000 Grade 1
Limited Warranty 3 Years
Fire Rated Yes
ADA Compliance Yes
Series Name NexTouch (Generation 3)
Access Function Software Programmable
Reader Technology Keypad Only
Keypad Type Capacitive Touchscreen
Cylinder Type

PARA Keyway Keyed Random,

Hand Non-Handed
Door Thickness 1-3/4"
Latch Backset Dimension 2-3/4"
Strike Type 4-7/8" x 1-1/4"
Power Battery Pack
Operating Voltage 4 AA Batteries
Product Type Cylindrical Locks with Keypad Trim
