Description

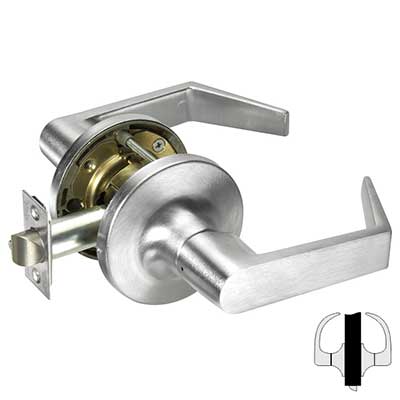

Accentra (Formerly Yale) AU5301LN-626 Passage Function Cylindrical Lock - 2-3/4" Backset, AU Lever, Non-Keyed, US26D/626 Satin Chrome Finish
The Accentra 5301 is a Grade 2 Passage/Closet Latch Cylindrical Lock, Augusta Lever, Non-Keyed, Satin Chrome Finish, Non-handed
Technical Specifications
| Function | 01 Passage Function |
| Function Family | Passage |
| ANSI Function |
F75 - Passage |
| Lever/Knob Design | Au Augusta |
| Lever/Knob Design Family | Straight Return Lever |
| Rose/Escutcheon Design |
3-1/2" Rose Diameter |
| Rose/Escutcheon Dimensions | 3-1/2" |
| Cylinder Type |
Non-Keyed |
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Std. Latch Number | 380BN |
| Std. Latch Type | Spring latch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 7/8" |
| Lock Face Size | 1" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 497 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
