Description

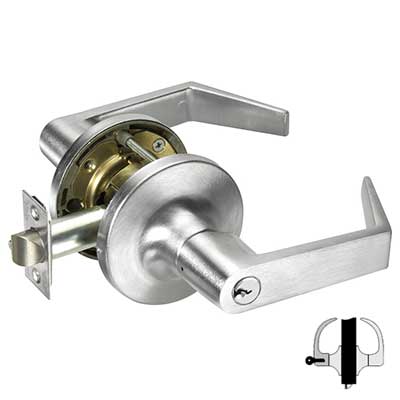

Accentra AU5308LN-626 Classroom Function Cylindrical Lock - 2-3/4" Backset, AU Lever, Schlage "C" Key Way KR, 626 Satin Chromium Finish Keyed Random
Features
- Available in 3 non-handed lever options: Augusta (AU), Monroe (MO) & Pacific Beach (PB)
- Features a patented Free Wheeling lever mechanism: when the outside lever is locked, it will rotate freely up and down while remaining securely locked
- Increased vandal resistance
- Keying options:
- Standard cylinders with Schlage ® C and Sargent ® LA keyways
- Levers that accept interchangeable core cylinders by Best ®, Corbin Russwin, Sargent ®, Schlage ®, Medeco ®, and ASSA ®
- Levers that accept standard cylinders by Schlage ®
Technical Specifications
| Function | 08 Classroom |
| Function Family | Classroom |
| ANSI Function |
F84 - Classroom |
| Lever/Knob Design | Au-Augusta |
| Lever/Knob Design Family | Straight Return Lever |
| Rose/Escutcheon Design |
3-1/2" Rose Diameter |
| Rose/Escutcheon Dimensions | 3-1/2" |
| Cylinder Type |
Schlage C KR |
| Num Pins | 6 |
| Key(s) | Cut |
| Num of Keys | 2 |
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Std. Latch Number | 380AN |
| Std. Latch Type | Deadlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 7/8" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 497 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
Specifications
| Door Thickness: | Locks are pre-assembled for 1-3/8" and 1-3/4" doors (preset at the factory for 1-3/4") |
| Backset: | 2-3/4" |
| Strike: | 4-7/8" ANSI Strike |
| Functions: | Classroom |
Certifications
| ANSI: | ANSI A156.2, 1996 series 4000 Grade 1 |
| ADA: | Meets accessibility guidelines of the Americans with Disabilities Act and the requirements of the Uniform Federal Accessibility for the Handicapped |
| UL: | UL-cUL fire label for all functions up to 3-hour doors |
