Description

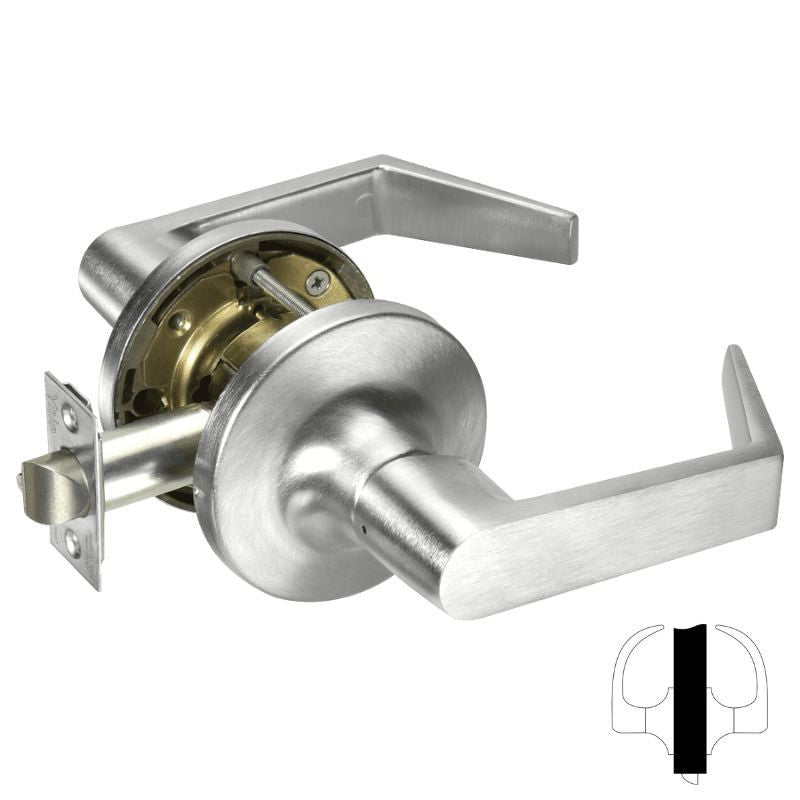

Accentra AU5401LN Passage/Closet Latch Cylindrical Lock, Augusta Lever, Non-Keyed, 2 3/4 Backset, ASA 4 7/8 Strike, Grade 1, Non Handed
The AU5401LN is a Grade 1 Cylindrical Lever Lockset that has a 2 1/8" bore, 2 3/4" backset. The 5400 series lock is an 01 Passage Function, meaning it has no key, positively latches but cannot be locked. The AU is an Augusta Style Lever
Passage or Closet Latch
• For doors that do not require locking.
• Either lever operates latchbolt at all times
Product Specs
| Vendor | ASSA ABLOY |
| Manufacturer | Accentra |
| SKU | AU5401LN |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | United States |
| Unit of Measure | Each |
| Base Material | Brass, Bronze |
| UL Listing Type | ANSI A156.2, Series 4000, Grade 1, UL Listed |
| ANSI Number | F75 |
| Limited Warranty | 7 Year Warranty |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
Technical Specs
| Function |
01 Passage |
| Function Family | Passage |
| ANSI Function |
F75 - Passage |
| Lever/Knob Design |
AU Augusta |
| Lever/Knob Design Family | Straight Return Lever |
| Rose/Escutcheon Design |
3-1/2" Rose Diameter |
| Rose/Escutcheon Dimensions | 3-1/2" |
| Cylinder Type |
Non-Keyed |
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Std. Latch Number | 693 |
| Std. Latch Type | Beveled Springlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 497 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
