Description

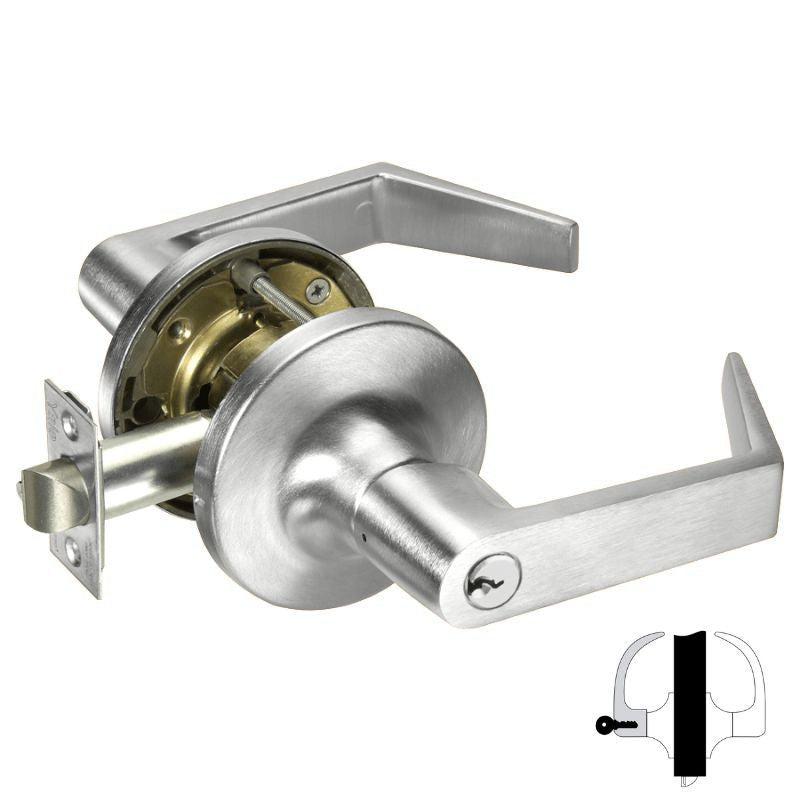

Accentra (Yale) AU5405LN-SC-KD Storeroom/Closet Cylindrical Lock, Augusta Lever, Schlage C Keyway, Keyed Different, 2 Keys, 2 3/4 Backset, ASA 4 7/8 Strike, Grade 1, Non Handed
The Accentra (Yale) AU5405LN-SC-KD Storeroom/Closet Cylindrical Lock features an Augusta Lever and a Schlage C Keyway for added security. It is keyed randomly and comes with 2 keys, with a 2 3/4 backset and an ASA 4 7/8 strike. This Grade 1 lock is also non-handed for convenience.Storeroom or Closet Lock
• For use on storeroom, utility, and exit doors.
• Deadlocking latchbolt.
• Latchbolt operated by lever inside, key in
outside lever.
• Outside lever always locked.*
• Inside lever always active.
Product Specs
| Vendor | ASSA ABLOY |
| Manufacturer | Accentra |
| SKU | AU5405LN |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | United States |
| Unit of Measure | Each |
| Base Material | Brass, Bronze |
| UL Listing Type | ANSI A156.2, Series 4000, Grade 1, UL Listed |
| ANSI Number | F86 |
| Limited Warranty | 7 Year Warranty |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
Technical Specs
| Function |
05 Storeroom |
| Function Family | Storeroom |
| ANSI Function |
F86 - Storeroom |
| Lever/Knob Design |
AU Augusta |
| Lever/Knob Design Family | Straight Return Lever |
| Rose/Escutcheon Design |
3-1/2" Rose Diameter |
| Rose/Escutcheon Dimensions | 3-1/2" |
| Cylinder Type |
Conventional Cylinder |
| Num Pins | 6 |
| Key(s) | Cut |
| Num of Keys | 2 |
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Std. Latch Number | 694 |
| Std. Latch Type | Beveled Deadlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 497 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
