Description

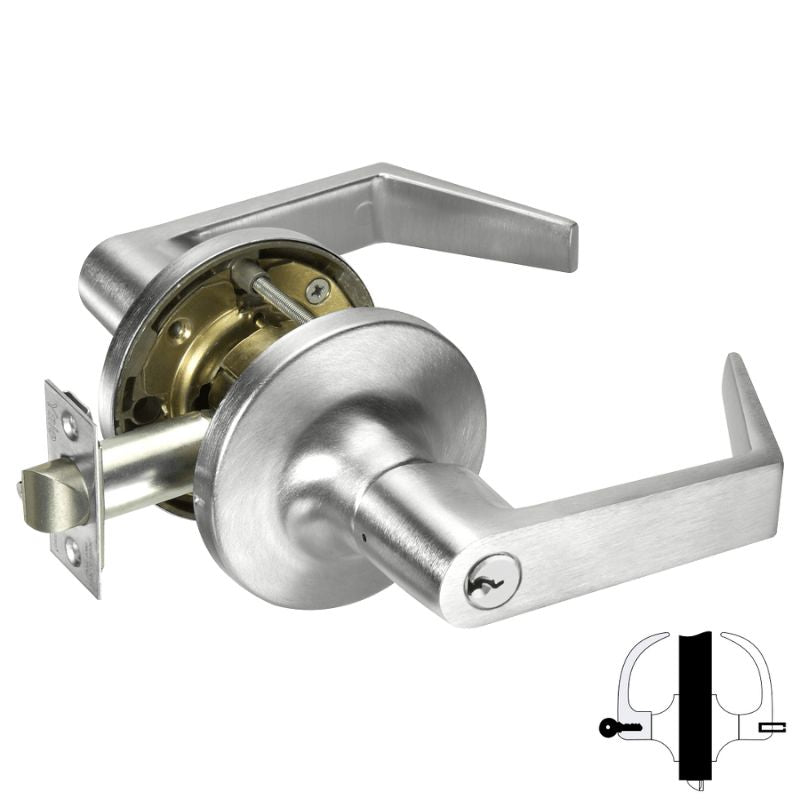

Accentra (Yale) AU5430LN-626-SC-KD Utility, Asylum or Institutional Cylindrical Lock, AU Lever, Schlage "C" Key way Keyed Different, 2-3/4" Backset, ASA 4 7/8" Strike, Non Handed, US26D-626 Satin Chrome Finish
The Accentra (Yale) AU5430LN-626-SC-KD is a versatile cylindrical lock designed for use in utility, asylum, or institutional settings. It features an AU lever and a Schlage "C" key way, and can be keyed different for added security. With a 2-3/4" backset and an ASA 4 7/8" strike, this non-handed lock is suitable for a variety of door setups. Its sleek US26D-626 satin chrome finish adds a professional touch to any space.
Utility, Asylum or Institutional Lock
• Deadlocking latchbolt.
• Latchbolt operated by key in lever from either side.
• Both levers always locked.*
Product Specs
| Vendor | ASSA ABLOY |
| Manufacturer | Accentra |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | United States |
| Unit of Measure | Each |
| Base Material | Brass, Bronze |
| UL Listing Type | ANSI A156.2, Series 4000, Grade 1, UL Listed |
| ANSI Number | F76A |
| Limited Warranty | 7 Year Warranty |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| Finish | 626/US26D |
| Finish Description | Satin Chrome |
| Finish Family | Matte Silver |
Technical Specs
| Function |
30 Utility, Asylum or Institutional |
| Function Family | Utility, Asylum or Institutional |
| ANSI Function |
F87 - Utility, Asylum or Institutional |
| Lever/Knob Design | AU Augusta Lever |
| Lever/Knob Design Family | Straight Return Lever |
| Rose/Escutcheon Design |
3-1/2" Rose Diameter |
| Rose/Escutcheon Dimensions | 3-1/2" |
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Std. Latch Number | 693 |
| Std. Latch Type | Beveled Springlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 497 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
