Description

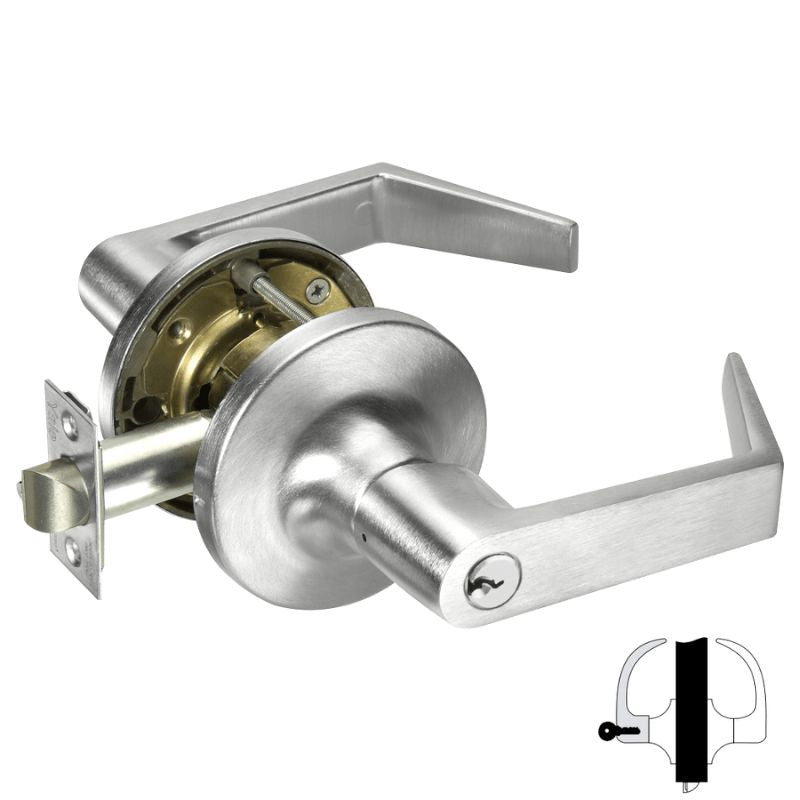

Accentra (Formerly Yale) AU5408LN-SC-KD Classroom Cylindrical Lock, Augusta Lever, Schlage C Keyway, Keyed Different, 2 Keys, 2 3/4 Backset, ASA 4 7/8 Strike, Grade 1, Non Handed
The Accentra (Formerly Yale) AU-5408LN Cylindrical Lever Door Lockset Classroom Function Brushed Chrome Finish. Accentra's AU5408LN With Augusta Lever Is a Heavy Duty Lockset Grade 1, 2 1/8" bore with a 2 3/4" backset. The lock is a 5400 series and the 08 functions is a classroom function. Key locks/Unlocks Lever.
Classroom Lock
• For classroom or utility room doors.
• Deadlocking latchbolt.
• Either lever operates latchbolt (except when outside lever is locked by key).*
• Inside lever always active.
• Outside lever locked* or unlocked only by key
Product Specs
| Vendor | ASSA ABLOY |
| Manufacturer | Accentra |
| SKU | AU5408LN |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | United States |
| Unit of Measure | Each |
| Base Material | Brass, Bronze |
| UL Listing Type | ANSI A156.2, Series 4000, Grade 1, UL Listed |
| ANSI Number | F84 |
| Limited Warranty | 7 Year Warranty |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
Technical Specs
| Function | 08 Classroom Function |
| Function Family | Classroom |
| ANSI Function |
F84 - Classroom |
| Lever/Knob Design | AU Augusta Lever |
| Lever/Knob Design Family | Straight Return Lever |
| Rose/Escutcheon Design |
3-1/2" Rose Diameter |
| Rose/Escutcheon Dimensions | 3-1/2" |
| Cylinder Type |
Conventional Cylinder |
| Num Pins | 6 |
| Key(s) | Cut |
| Num of Keys | 2 |
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Std. Latch Number | 694 |
| Std. Latch Type | Beveled Deadlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 497 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
