Technical Specifications
| Function | Privacy |
| ANSI Function | F02 - Privacy |
| Lever/Knob Design | AU Augusta |
| Lever/Knob Design Family | Straight Return Lever |
| Rose/Escutcheon Design | Rose with Indicator |
| Cylinder Type | Non-Keyed |
| Handing | Non-handed |
| Std. Latch Number | 693A |
| Std. Latch Backset Dim | 2-3/4" |
| Lock Face Size | 2-1/4" x 1-1/8" |
| Std. Strike Number | 497 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Width | 1-1/4" |
Product Specifications
| Manufacturer | Accentra |
| SKU | AUYPL02 |
| Grade | Grade 1 |
| Installation | Commercial |
| Unit of Measure | Each |
| Limited Warranty | 3 Years |
| Fire Rated | 3 Hours {A} |
| Application | Indicator with Icons |

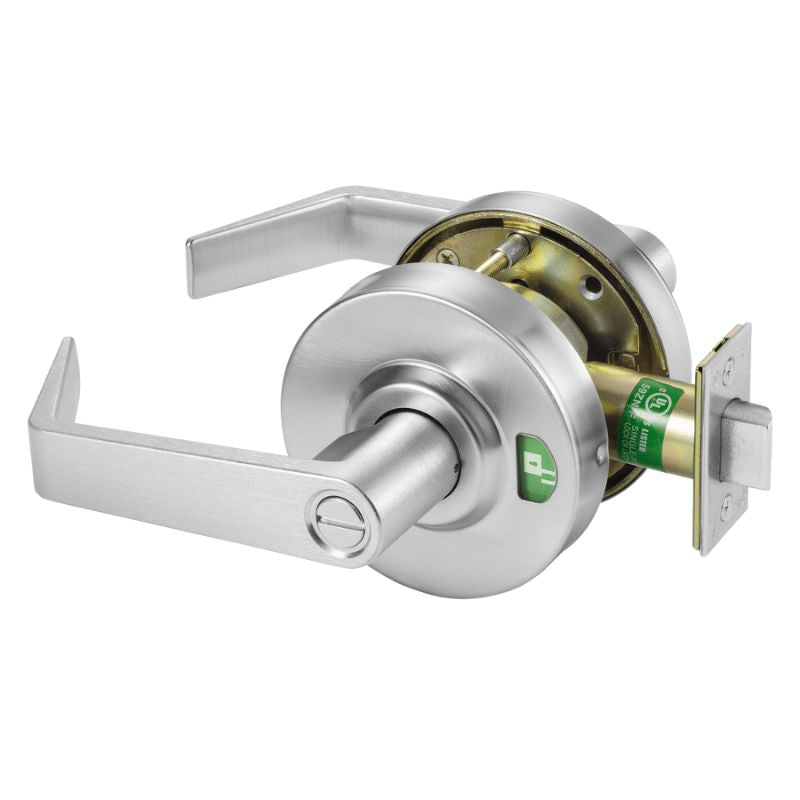

Accentra (Formerly Yale) AUYPL02 Privacy Cylindrical Indicator Lock, Non-Keyed, Augusta Lever, Rose with Icons Only Indicator, Green/Red, 2 3/4 BackSet., 4 7/8" Strike, Grade 1, Non-Handed
The Accentra (Yale) AUYPL02 is a non-keyed cylindrical indicator lock with an Augusta lever and a rose featuring only icons. It has a green/red indicator, a 2 3/4" backset, and a 4 7/8" strike, making it a Grade 1 lock that is non-handed.
Features
- Red or Green window display with a padlock icon for visual door status
- Cylindrical lock construction for durability and longevity in high-use applications
- Patent pending design
- Privacy function (F76A) with push button lock and automatic unlock when the inside lever is pushed down.
- One motion for egress
- Coin turn for emergency access
- Through-bolted for robust operation
- Ideal for retrofit
- The lever returns to within 1/2" of the door face
Privacy Lock with Indicator
- Either lever operates the latch bolt unless the outside lever is locked by a pushbutton inside.
- Pushbutton inside changes indicator display status outside.
- Rotating the inside lever and/or closing the door unlocks the outside lever, and changes the indicator display status outside.
- Coin turn-in outside lever for emergency access.
- The inside lever is permanently active.
- The outside lever is rigid when in the locked position.
