Description

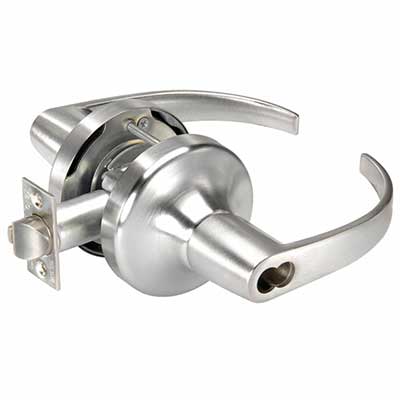

Accentra (Formerly Yale) B-PB4707LN 626 Grade 1 Entry Cylindrical Lock, Pacific Beach Lever, B-SFIC Interchangeable Core, Less Cylinder, US26D/626 Satin Chrome Finish, Non-handed
The Accentra B-PB4707LN 626 is a grade 1 4700 series cylindrical lock, 2 1/8" bore, 2 3/4" backset. The B stands for SFIC Interchangeable Core, Less Cylinder. PB is a Pacific Beach Lever, and 07 Function is an Office/Entry Function. The finish is a US26D/626 Brushed Chrome FinishTechnical Specifications
| Function | 07 Entry |
| Function Family | Entrance/Office |
| ANSI Function |
F109 - Entry/Office |
| Lever/Knob Design |
PB Pacific Beach |
| Lever/Knob Design Family | Curved Return Lever |
| Rose/Escutcheon Design |
3-1/2" Rose Diameter |
| Rose/Escutcheon Dimensions | 3-1/2" |
| Cylinder Type |
SFIC Prep Less Core |
| Num Pins | 6 or 7 |
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Std. Latch Number | 694 |
| Std. Latch Type | Beveled Deadlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 497 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
