Description

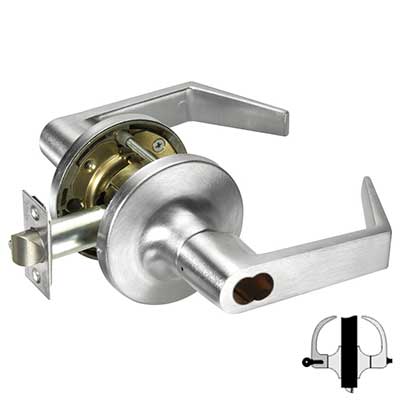

Accentra (Formerly Yale) BAU5407LN-626 Entry Function Cylindrical Lock, Augusta Lever, SFIC Less Core, 2 3/4 Backset, 4 7/8 Strike, Grade 1, Non Handed, US26D-626 Satin Chrome Finish
The BAU5407LN 626 is a Grade 1 Cylindrical Lock 2 1/8" bore, with a 2 3/4" backset. This 5400 Series lock is an 07 Entrance Function, Key on one side, Push button on the other. The B stands for Best Sfic Interchangeable Core, Less Cylinder. The finish is a US26D/626 Brushed Satin Chrome Finish
Product Specs
| Vendor | ASSA ABLOY |
| Manufacturer | Accentra |
| SKU | B-AU5407LN 626 |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | United States |
| Unit of Measure | Each |
| Base Material | Brass, Bronze |
| UL Listing Type | ANSI A156.2, Series 4000, Grade 1, UL Listed |
| ANSI Number | F109 |
| Limited Warranty | 7 Year Warranty |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| Finish | 626/26D |
| Finish Description | Satin Chrome |
| Finish Family | Matte Silver |
Technical Specs
| Function |
07 Entry |
| Function Family | Entrance/Office |
| ANSI Function |
F109 - Entry/Office |
| Lever/Knob Design |
AU Augusta |
| Lever/Knob Design Family | Straight Return Lever |
| Rose/Escutcheon Design |
3-1/2" Rose Diameter |
| Rose/Escutcheon Dimensions | 3-1/2" |
| Cylinder Type |
SFIC Prep Less Core |
| Num Pins | 6/7 |
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Std. Latch Number | 694 |
| Std. Latch Type | Beveled Deadlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 497 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
