Description

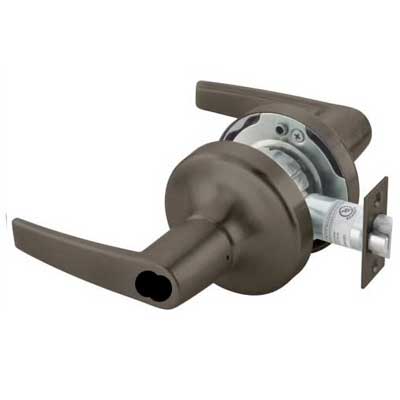

Accentra (Formerly Yale) BMO4707LN-613E Entrance Door Lock Grade 1 MO Lever, Best SFIC LC, 613E Dark Oxidized Satin Bronze
The Accentra BMO4707LN 613E is a grade 1 cylindrical lockset with a 2 1/8" bore, and a 2 3/4" backset. The B in the part stands for SFIC Interchangeable Core Less Cylinder, Mo stands for the Monroe Lever. The 07 Function is an Entry Function push button inside and keys outside. The finish is a 613E/US10BE Dark Oxidized Satin Bronze
Technical Specifications
| Function | 07 Entry |
| Function Family | Entrance/Office |
| ANSI Function |
F109 - Entry/Office |
| Lever/Knob Design | MO Monroe |
| Lever/Knob Design Family | Curved Lever |
| Rose/Escutcheon Design |
3-1/2" Rose Diameter |
| Rose/Escutcheon Dimensions | 3-1/2" |
| Cylinder Type |
SFIC Prep Less Core |
| Num Pins | 6 or 7 |
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Std. Latch Number | 694 |
| Std. Latch Type | Beveled Deadlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 497 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
Product Specifications
| Vendor | Assa Abloy |
| Manufacturer | Accentra |
| SKU | B-MO4707LN 613E |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | United States |
| Unit of Measure | Each |
| Base Material | Bronze |
| UL Listing Type | ANSI A156.2, Series 4000, Grade 1, UL Listed |
| ANSI Number | F109 |
| Limited Warranty | 5 Year Warranty |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| Finish | 613E/US10BE |
| Finish Description | Dark Oxidized Bronze |
| Finish Family | Dark Bronze |
