Technical Specs
| Function | 07-Entry Lock |
| Function Family | Entrance/Office |
| ANSI Function |
F109 - Entry/Office |
| Lever/Knob Design |
MO - Monroe Lever |
| Lever/Knob Design Family | Curved Lever |
| Rose/Escutcheon Design |
3-1/2" Rose Diameter |
| Rose/Escutcheon Dimensions | 3-1/2" |
| Cylinder Type |
SFIC Prep Less Core |
| Num Pins | 6/7 |
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Std. Latch Number | 694 |
| Std. Latch Type | Beveled Deadlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 497 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
Product Specs
|
Vendor |
ASSA ABLOY |
| Manufacturer | Accentra |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | United States |
| Unit of Measure | Each |
| Base Material | Brass, Bronze |
| UL Listing Type | ANSI A156.2, Series 4000, Grade 1, UL Listed |
| ANSI Number | F109 |
| Limited Warranty | 7 Year Warranty |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| Finish | 626/US26D |
| Finish Description | Satin Chrome |
| Finish Family | Matte Silver |

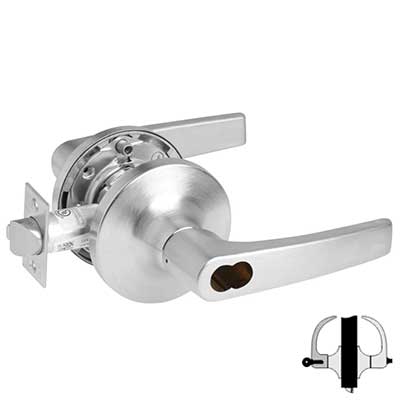

Accentra (Yale) BMO5407LN-626 Entry Function Cylindrical Lock, Monroe Lever, SFIC Less Core, 2 3/4 Backset, 4 7/8 Strike, Grade 1, Non Handed, US26D-626 Satin Chrome Finish
The Accentra B-MO-5407LN 626 Cylindrical Lever Door Lockset Entrance Office Function Brushed Chrome Finish. Accentra's BMO5407LN-626 With Monroe Lever Is a Heavy Duty Lockset. Entry Lock for entrance, general home or office doors. See more Accentra Cylindrical Locks.
