Description

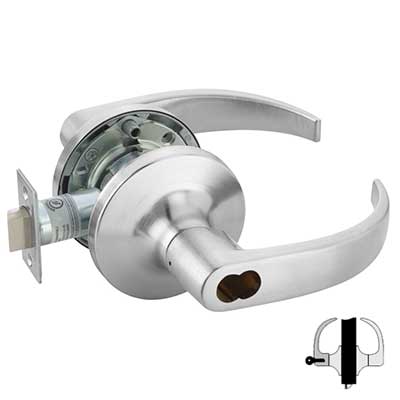

Accentra BPB5308LN626 Classroom Function Lock - 2-3/4" Backset, PB Lever, Best SFIC Interchangeable Core, Less Core 626 Satin Chromium Plated
The Accentra BPB5308LN 626 is a Grade 1 Cylindrical lock 2 1/8" bore, 2 3/4" backset, The B stands for SFIC interchangeable Small Format Core, PB is the Pacific Beach Lever, and this lock is a US26D/626 Brushed Chrome Finish
Technical Specifications
| Function |
08 Classroom |
| Function Family | Classroom |
| ANSI Function |
F84 - Classroom |
| Lever/Knob Design |
PB Pacific Beach |
| Lever/Knob Design Family | Curved Return Lever |
| Rose/Escutcheon Design |
3-1/2" Rose Diameter |
| Rose/Escutcheon Dimensions | 3-1/2" |
| Cylinder Type |
SFIC Prep Less Core |
| Num Pins | 6/7 |
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Std. Latch Number | 380AN |
| Std. Latch Type | Deadlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 7/8" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 497 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
