Description

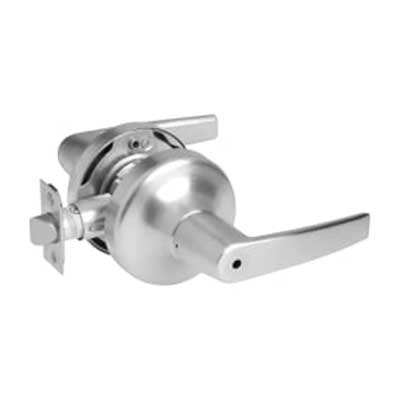

The Accentra MO4702LN-626 Privacy, Bedroom, Bath Function Cylindrical Lever Latch set is Grade 1 Heavy Duty and available in 626 Satin Chrome Finish.
Accentra MO4702LN-626 Series grade 1 Privacy, Bedroom, Bath cylindrical lever locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use, and installation are required at an economical price. The Accentra MO4702LN-626 Privacy, Bedroom, Bath lock is certified to ANSI/BHMA Grade 1 standards and is UL fire listed for all functions and ensuring reliability and peace of mind.
Technical Specifications
| Function |
02 Privacy |
| Function Family | Privacy |
| ANSI Function |
F76A - Privacy |
| Lever/Knob Design | MO Monroe Lever |
| Lever/Knob Design Family | Curved Lever |
| Rose/Escutcheon Design |
3-1/2" Rose Diameter |
| Rose/Escutcheon Dimensions | 3-1/2" |
| Cylinder Type |
Non-Keyed |
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Std. Latch Number | 693 |
| Std. Latch Type | Beveled Springlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 497 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
