Description

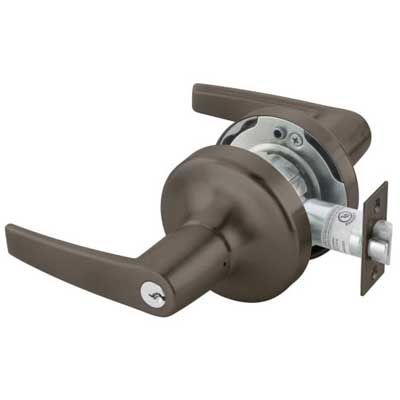

Accentra (Formerly Yale) MO4705LN-613E Storeroom Door Lock - Grade 1 (Mo Lever, 613E Dark Oxidized Satin Bronze Equivalent )
Accentra MO4705LN-613E Series grade 1 Storeroom or Closet cylindrical lever locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use, and installation are required at an economical price. The Accentra MO4705LN-613E lock is certified to ANSI/BHMA Grade 1 standards and is UL fire listed for all functions and ensuring reliability and peace of mind.
Technical Specifications
| Function | 05 Storeroom |
| Function Family | Storeroom |
| ANSI Function |
F86 - Storeroom |
| Lever/Knob Design | Mo Monroe Lever |
| Lever/Knob Design Family | Curved Lever |
| Rose/Escutcheon Design |
3-1/2" Rose Diameter |
| Rose/Escutcheon Dimensions | 3-1/2" |
| Cylinder Type |
Conventional Cylinder |
| Num Pins | 6 |
| Key(s) | Cut |
| Num of Keys | 2 |
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Std. Latch Number | 694 |
| Std. Latch Type | Beveled Deadlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 497 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
