Description

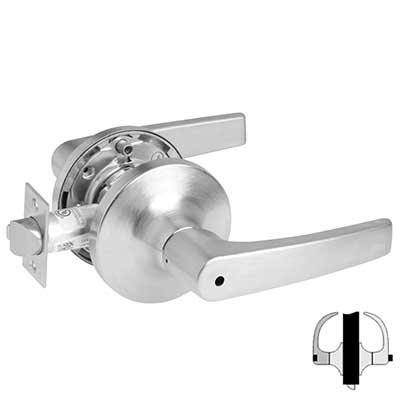

Accentra MO5302LN-626 Medium Duty Cylindrical Lockset 2-3/4" Backset, - Privacy Function, MO Lever, 626 Satin Chromium Finish
The Accentra MO5302LN-626 is a grade 2 cylindrical lock that has a 2 1/8" bore, and a 2 3/4" backset. The MO stands for Monroe lever, and 02 is a Privacy Function Lock. 626/US26D is a Satin Chrome Finish.
Technical Specifications
| Function | 02 Privacy |
| Function Family | Privacy |
| ANSI Function |
F76A - Privacy |
| Lever/Knob Design |
MO Lever |
| Lever/Knob Design Family | Curved Lever |
| Rose/Escutcheon Design |
3-1/2" Rose Diameter |
| Rose/Escutcheon Dimensions | 3-1/2" |
| Cylinder Type |
Non-Keyed |
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Std. Latch Number | 380BN |
| Std. Latch Type | Springlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 7/8" |
| Lock Face Size | 1" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 497 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
