Description

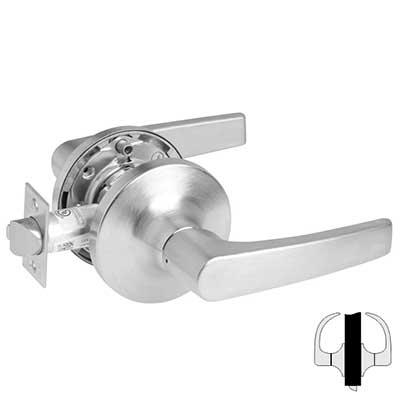

Accentra (Yale) MO5401LN-626 Passage/Closet Latch Cylindrical Lock, Monroe Lever, Non-Keyed, 2 3/4 Backset, ASA 4 7/8 Strike, Grade 1, Non Handed, US26D Satin Chrome Finish
The Accentra (Formerly Yale) MO5401ln 626 is a grade 1 cylindrical lock. Mo stands for Monroe Lever, the 01 is a passage function and the US26D/626 is a Satin Chrome Finish. These locks are a 2 1/8" bore 2 3/4" backset.
Product Specs
| Vendor | ASSA ABLOY |
| Manufacturer | Accentra |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | United States |
| Unit of Measure | Each |
| Base Material | Brass, Bronze |
| UL Listing Type | ANSI A156.2, Series 4000, Grade 1, UL Listed |
| ANSI Number | F76A |
| Limited Warranty | 7 Year Warranty |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| Finish | 626/US26D |
| Finish Description | Satin Chrome |
| Finish Family | Matte Silver |
Technical Specs
| Function | 01 Passage |
| Function Family | Passage |
| ANSI Function |
F75 - Passage |
| Lever/Knob Design |
MO Lever |
| Lever/Knob Design Family | Curved Lever |
| Rose/Escutcheon Design |
3-1/2" Rose Diameter |
| Rose/Escutcheon Dimensions | 3-1/2" |
| Cylinder Type |
Non-Keyed |
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Std. Latch Number | 693 |
| Std. Latch Type | Beveled Springlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 497 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
