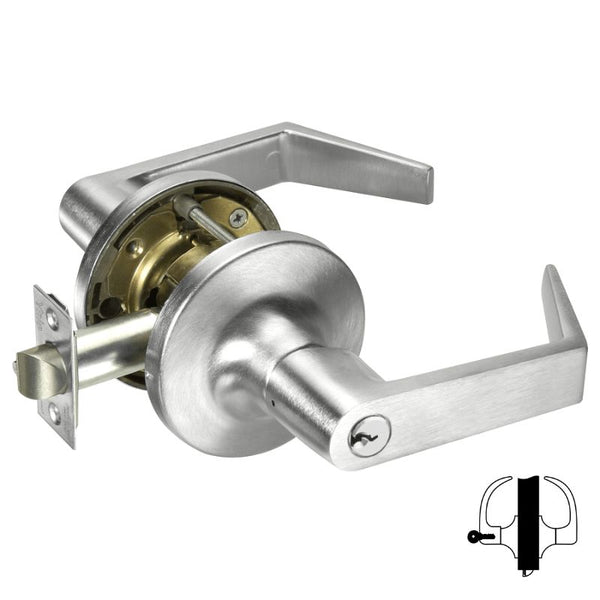

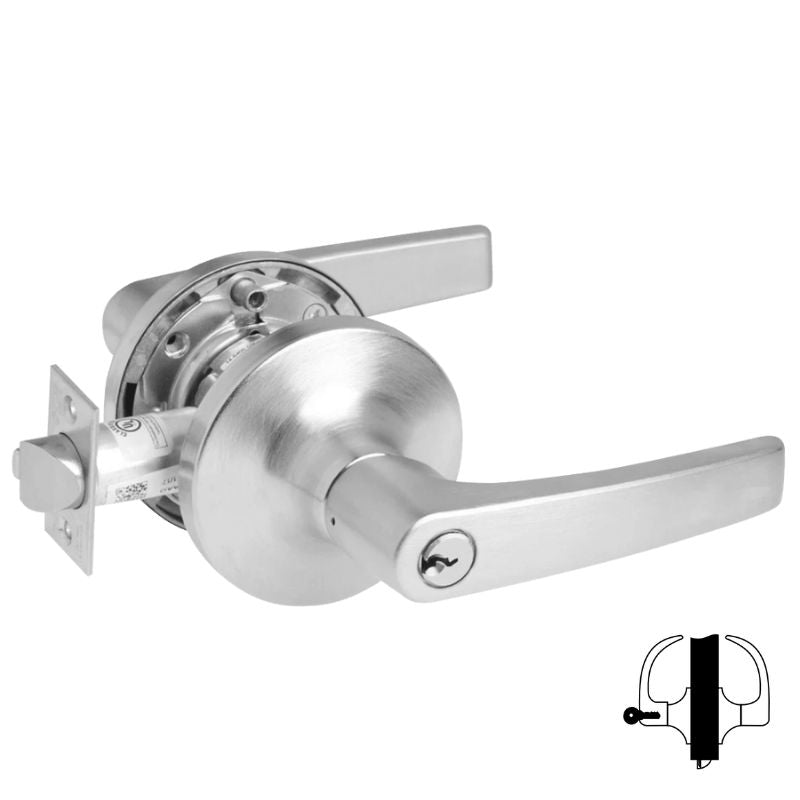

Accentra (Yale) MO5490LN-REX-12V-626, Electrified Cylindrical Lever Lock, Fail Safe, Satin Chrome

Accentra (Formerly Yale) MO5490LN-REX-12V-626 Fail Safe Electrified Cylindrical Lever Lock, Monroe Lever, 2 3/4 Backset, ASA 4 7/8 Strike, Grade 1, Non Handed, US26D-626 Satin Chrome Finish

Accentra (Formerly Yale) presents the MO5490LN-REX-12V-626, a Fail Safe Electrified Cylindrical Lever Lock. This lock is designed with the Monroe Lever and features a 2 3/4 backset, ASA 4 7/8 strike, and is Grade 1 certified. It is non-handed and finished in US26D-626 Satin Chrome.

Request to Exit (REX) Operating inside lever handle triggers REX switch which can be used to shunt an alarm, monitor egress or release a magnetic lock, etc.

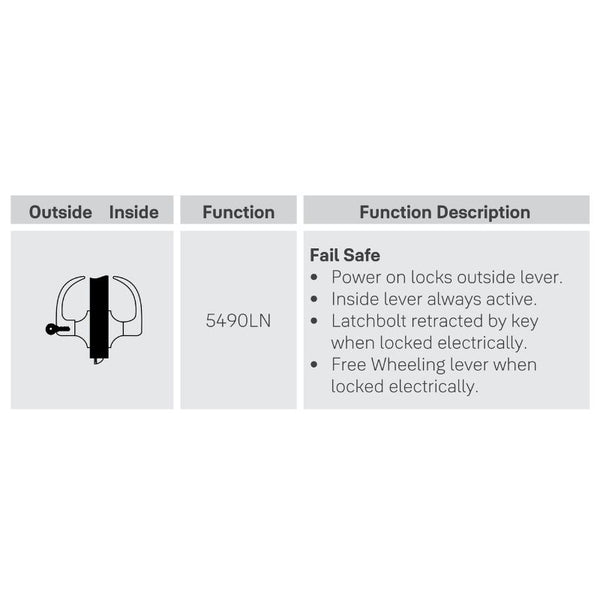

90LN Fail Safe Function

• Power on locks outside lever.

• Inside lever always active.

• The latchbolt is retracted by the key when locked electrically.

• Free Wheeling lever when locked electrically.

Core Options

• Standard-PARA Key Different PARA Keyway, Keyed Different, [2] Keys
• Standard-Schlage C Key Different Schlage "C" Keyway, Keyed Random, [2] Keys
• Yale-LFIC Less Core Yale LFIC Prep Less Core (Large Format Interchangeable Core)
• B (i.e. B-AU) SFIC (Accepts all Small Format Interchangeable Cores)
• M (i.e. M-AU) Medeco®, ASSA® LFIC (Large Format Interchangeable Core)
• SI (i.e. SI-AU) Schlage® LFIC (Large Format Interchangeable Core)
• R (i.e. R-AU) Corbin® LFIC (Large Format Interchangeable Core)
