Description

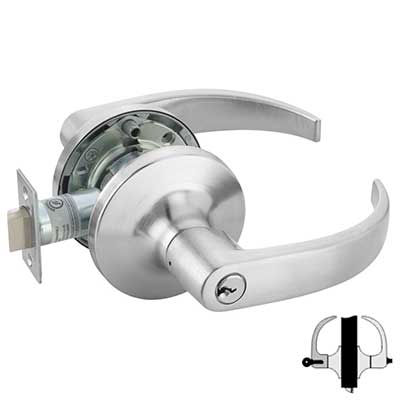

Accentra PB5307LN-626 Medium Duty Cylindrical Lockset 2-3/4" Backset, - Entrance Function, PB Lever, US26D Satin Chromium Finish, Schlage "C" Key Way, Keyed Random
Features
- Available in 3 non-handed lever options: Augusta (AU), Monroe (MO) & Pacific Beach (PB)
- Features a patented Free Wheeling lever mechanism: when the outside lever is locked, it will rotate freely up and down while remaining securely locked
- Increased vandal resistance
- Keying options:
- Standard cylinders with Schlage ® C and Sargent ® LA keyways
- Levers that accept interchangeable core cylinders by Best ®, Corbin Russwin, Sargent ®, Schlage ®, Medeco ®, and ASSA ®
- Levers that accept standard cylinders by Schlage
Technical Specifications
| Door Thickness: | Locks are pre-assembled for 1-3/8" and 1-3/4" doors (preset at the factory for 1-3/4") |
| Backset: | 2-3/4" |
| Strike: | 4-7/8" ANSI Strike |
| Functions: | Entrance |
Certifications
| ANSI: | ANSI A156.2, 1996 series 4000 Grade 1 |
| ADA: | Meets accessibility guidelines of the Americans with Disabilities Act and the requirements of the Uniform Federal Accessibility for the Handicapped |
| UL: | UL-cUL fire label for all functions up to 3-hour doors |
