Description

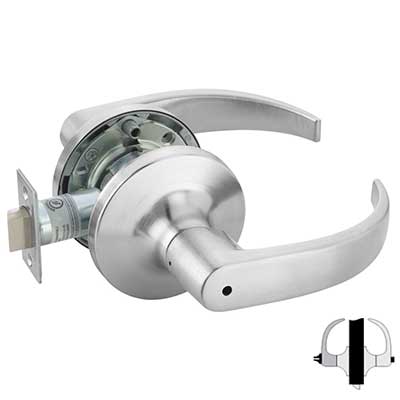

Accentra PB5425LN-626 PB5425LN-626 Privacy Cylindrical Lever Lock, Non-Keyed, Pacific Beach Lever, 2-3/4" Backset, 4-7/8" Strike, Grade 1, Non Handed, US26D Satin Chrome Finish
The PB5425LN 626 is a Grade 1 Cylindrical Lever Lockset. The lock is a 5400 series and the 25 is a Privacy Function for lavatory or other privacy doors. Either lever operates a latch bolt (except when the outside lever is locked by the inside pushbutton) Button automatically releases by turning the inside lever or closing the door. The door can be unlocked, when necessary, by operating the outside turn button. The PB5402LN has a 2 1/8" bore 2 3/4" backset. This lock is non-keyed and comes in a US26D/626 Brushed Chrome Finish.
Product Specs
| Vendor | ASSA ABLOY |
| Manufacturer | Accentra |
| SKU | PB5425LN 626 |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | United States |
| Unit of Measure | Each |
| Base Material | Brass, Bronze |
| UL Listing Type | ANSI A156.2, Series 4000, Grade 1, UL Listed |
| Limited Warranty | 7 Year Warranty |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| Finish | 626/US26D |
| Finish Description | Satin Chrome |
| Finish Family | Matte Silver |
Technical Specs
| Function |
25 Privacy |
| Function Family | Privacy |
| Lever/Knob Design | PB Pacific Beach |
| Lever/Knob Design Family | Curved Return Lever |
| Rose/Escutcheon Design |
3-1/2" Rose Diameter |
| Rose/Escutcheon Dimensions | 3-1/2" |
| Cylinder Type |
Non-Keyed |
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Std. Latch Number | 693 |
| Std. Latch Type | Beveled Springlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 497 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
