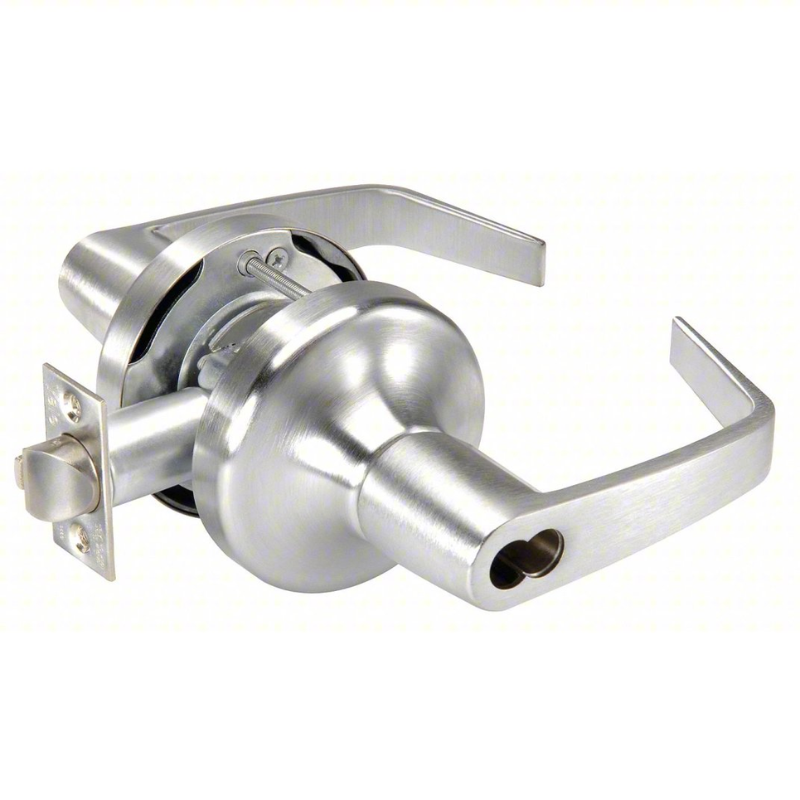

Accentra (Yale) SI-AU-5406LN-626-LC Service Station Cylindrical Lock, Augusta Lever, Schlage LFIC Prep Less Core, 2-3/4" Backset, 4-7/8" ASA Strike, Grade 1, Non Handed, US26D Satin Chrome Finish
The Accentra (Yale) SI-AU-5406LN-626-LC is a Grade 1 cylindrical service station lock built for high-traffic commercial openings where durability and controlled access matter. It features the clean, contemporary Augusta lever design paired with a Schlage LFIC (Large Format Interchangeable Core) prep, shipped less core so you can install your preferred keying system. With a standard 2-3/4" backset and a 4-7/8" ASA strike, this non-handed lockset installs on a wide range of doors and simplifies inventory. The attractive US26D (626) satin chrome finish resists wear while blending into most modern environments, making it a reliable choice for offices, schools, and institutional facilities.
Features
- Grade 1 cylindrical lockset engineered for heavy-duty commercial use.
- Augusta (AU) lever offers a smooth, modern profile that meets ADA requirements.
- Schlage LFIC prep, shipped less core, for flexible interchangeable-core keying.
- Standard 2-3/4" backset fits typical commercial door preps.
- Includes a 4-7/8" ASA (ANSI) strike for proper frame alignment.
- Non-handed design simplifies installation and stocking.
- Durable US26D satin chrome finish for lasting appearance.
Functional Details
The 5406LN service station function is designed for openings where the latch is retracted by the lever from either side, but outside access can be controlled with a key cylinder, making it ideal for service counters and monitored access points.
- Service station function (F82).
- Latchbolt operated by lever from either side except when outside is locked by key.
- Auxiliary latch deadlocks latchbolt when door is closed.
Included Components
The lockset ships with the Augusta lever trim on both sides, a 4-7/8" ASA strike, and the mounting hardware required for standard commercial installation. The LFIC core is not included and must be ordered separately.
| Manufacturer | Accentra (Yale) |
| SKU | SI-AU-5406LN-LC |
| Lever Style | Augusta (AU) |
| Function | Service Station |
| Grade | ANSI/BHMA Grade 1 |
| Cylinder Prep | Schlage LFIC, Less Core |
| Handing | Non-Handed |
| Finish | US26D / 626 Satin Chrome |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL/cUL Listed for 3-Hour Fire Doors |
| ANSI Number | F82 |
| BAA Qualified | Yes |
| Limited Warranty | Yes |
| Backset | 2-3/4" |
| Strike Type | 4-7/8" ASA (ANSI) Strike |
| Latchbolt Throw | 1/2" |
| Door Thickness Range | 1-3/8" to 2" |
| Chassis Type | Cylindrical |
| Lever Return | Return to Within 1/2" of Door Face |
| Cycle Rating | Grade 1 (BHMA A156.2) |
| Cross-Bore Diameter | 2-1/8" |
| Edge-Bore Diameter | 1" |
| Rose Diameter | 3-9/16" |
| Core Format | Large Format Interchangeable Core (LFIC) |
