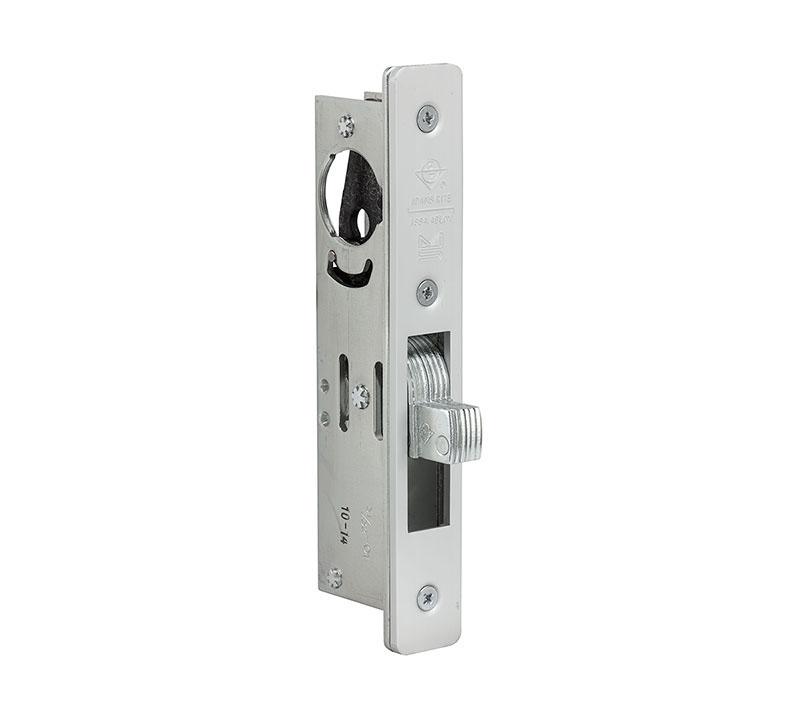

Adams Rite 1830-03-628 Bottom Rail Deadlock, 1-1/8" Backset, Aluminum Finish

  • SKU: 183003628

Adams Rite 1830-03-628 Bottom Rail Deadlock, 1-1/8" Backset, Aluminum Finish

  • SKU: 183003628
Sale price$249.00/ea
In Stock
In Stock

Adams Rite 1830-03-628 Bottom Rail Deadlock, 1-1/8" Backset, 628 Aluminum Finish

1830-03-628 Adams Rite Aluminum Door Deadlocks Provides bottom rail locking in ultra-narrow stile or tempered glass doors. Bottom Rail Deadlock, 1-1/8" Backset, Aluminum

1830 Bottom Rail Deadlock

Tamper-proof with an armored faceplate, it protects with a minimum threshold strike opening.

  • Cylinder Height (Backset): 31/32" and 1-1/8" only.
  • Case: Steel with corrosion-resistant plating. Measures 1" x 6" x depth (depth varies with cylinder height).
  • Bolts: 15/32" x 5/8" x 2-1/8" with 5/8" throw. Six-ply laminated steel with eight plys within a case. Center ply has an Alumina-Ceramic core to deter hacksaw attacks.
  • Strike: See back page for dimensions of strike slot which can be cut in metal thresholds. 4006 strike is available separately, with stainless steel trim plate and plastic box.
  • Cylinder Cam: Operable by any standard mortise cylinder with MS ® cam, dimensioned as shown. Cylinders with MS ® cams can be readily obtained from most cylinder manufacturers. See CYLINDERS section for cylinder make, thumb turn and trim ring information.
  • Options: Specify either 31/32" or 1-1/8" cylinder height (see dash table on catalog page). 4006 strike and cylinder(s) available separately, if required.
  • Standard Package:
  • Individually boxed with machine screws for mounting. Cylinders and/or thumb turns are available separately. Shipping weight: 1-1/2 lbs.
