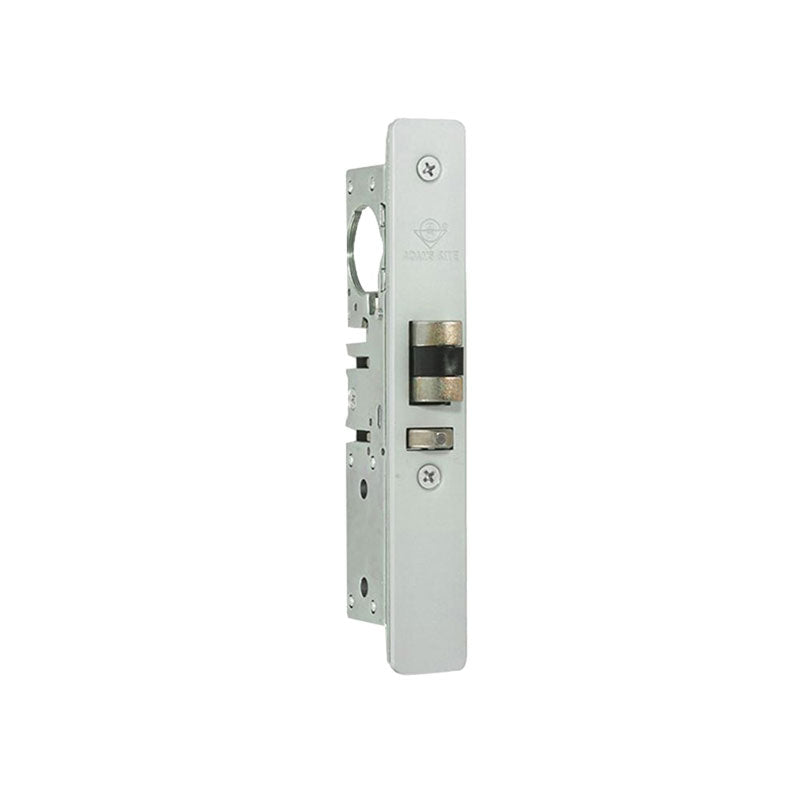

Adams Rite 4510-35-201 Standard Duty Deadlatch, Flat Faceplate, Guarded Latch, Less Cylinder, Left-Handed or Right Hand Reverse

  • SKU: 451035201628

Adams Rite 4510-35-201 Standard Duty Deadlatch, Flat Faceplate, Guarded Latch, Less Cylinder, Left-Handed or Right Hand Reverse

  • SKU: 451035201628
Sale price$164.00/ea
In Stock
In Stock
Finish: 628 - Satin Aluminum

The Adams Rite 4510-35-201 Standard Duty Deadlatch, has a Flat Faceplate, a Guarded Latch, a 1 1/8" Backset, a 2 5/8" Mortise Strike, is Sold Less Cylinder, and is for Left-Handed or Right Hand Reverse applications.

4510 Standard Duty Deadlatch

4510 Standard Duty Deadlatches provide flexible traffic control during and after business hours.

The 4510 Series has includes a reverse turn of the key while the bolt is held retracted retains the bolt to allow two-way traffic for hospitals, banks, stores, and other buildings which require free entrance at certain times and exit-only at other times. Interchangeable, without stile modification, with any MS1850A or MS1850S Deadlock of same backset and faceplate shape.

  • Bolt Holdback: While bolt is held fully retracted, a reverse turn of the key retains the bolt, allowing the door to be free swinging.
  • Cylinder Backset: 7/8”, 31/32”, 1-1/8” or 1-1/2” only
  • Case: Measures 1” x 5-13/16” x depth. Depth varies by backset (see table on catalog page). Steel with corrosion-resistant plating.
  • Latchbolt: 1/2” x 1” x 1/2” throw. All metal with hardened steel internal pins. Handing is reversible without special tools.
  • Auxiliary Bolt: All metal. Deadlocks latch bolt to prevent “loiding” or case-knife entry.
  • Strikes: Standard strike furnished is 4902-01 for flat jamb where door closes flush or nearly flush. Available separately: radius strike for opposite stile in paired doors; longer strike (4901) to cover slot strike of MS lock; long lip strikes for centerhung doors.
  • Cylinder Cam: Operable by any standard mortise cylinder with MS® cam, dimensioned as shown. Cylinders with MS® cams can be readily obtained from most cylinder manufacturers. See CYLINDERS for cylinder make, thumbturn and trim ring information.
  • Options: Backset, faceplate shape, strike, handing, and finish must be specified when ordering.
Manufacturer Adams Rite
SKU 4510-36-201
Installation Commercial
Origin USA
Unit of Measure Each
Base Material Aluminum
BAA Qualified Yes
Limited Warranty 5 Years



Function Narrow Stile Latch Lock
Cylinder Type Less Cylinder
Handing LH or RHR
Door Thickness 1-3/4" to 2"
Std. Latch Type Guarded Latch
Std. Latch Backset Dim 1-1/8"
Lock Face Size 6-7/8" x 1"
Bolt Projection 1/2"
Std. Strike Number 4902-01
Std. Strike Type Mortise
Std. Strike Height 2-5/8"
Std. Strike Width 1-9/16"
Dust Box Plastic
Screws Machine
Product Type Mortise Lock
