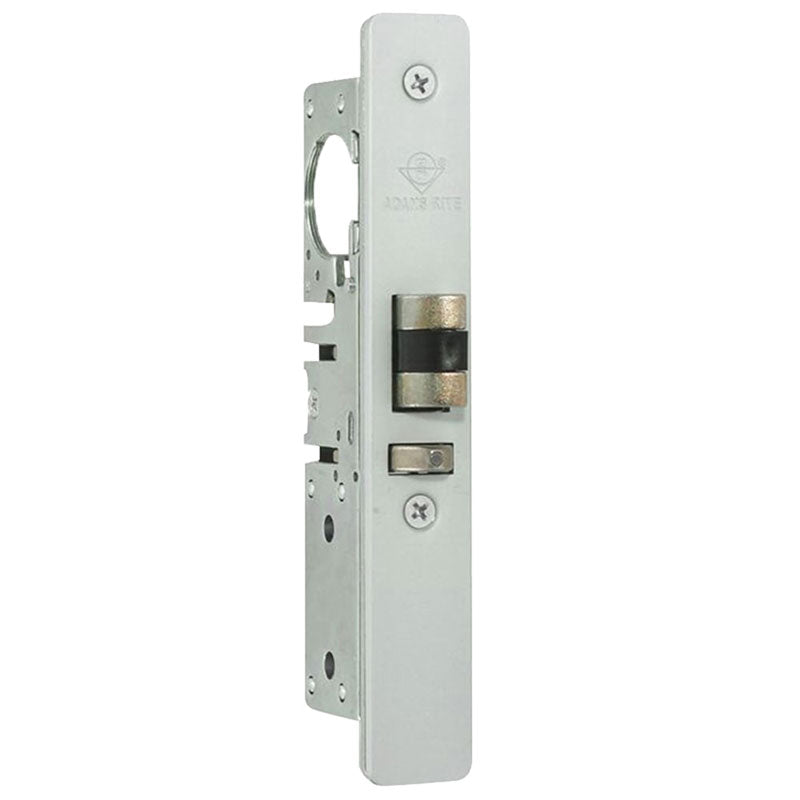

Adams Rite 4510-36-101-628 Standard Duty Deadlatch, Flat Faceplate, Guarded Latch, Right-Handed or Left Hand Reverse, Satin Aluminum Clear Anodized

  • SKU: 451036101628

Adams Rite 4510-36-101-628 Standard Duty Deadlatch, Flat Faceplate, Guarded Latch, Right-Handed or Left Hand Reverse, Satin Aluminum Clear Anodized

  • SKU: 451036101628
Sale price$201.00/ea
In Stock
In Stock

The Adams Rite 4510-36-101-628 Standard Duty Deadlatch, has a Flat Faceplate, a Guarded Latch, a 1 1/8" Backset, a 4 5/8" Mortise Strike, is for Left-Handed or Right Hand Reverse applications and comes in 628 Satin Aluminum Clear Anodized Finish.

4510 Standard Duty Deadlatch

4510 Standard Duty Deadlatches provide flexible traffic control during and after business hours.

The 4510 Series has includes a reverse turn of the key while the bolt is held retracted retains the bolt to allow two-way traffic for hospitals, banks, stores, and other buildings which require free entrance at certain times and exit-only at other times. Interchangeable, without stile modification, with any MS1850A or MS1850S Deadlock of same backset and faceplate shape.

  • Bolt Holdback: While bolt is held fully retracted, a reverse turn of the key retains the bolt, allowing the door to be free swinging.
  • Cylinder Backset: 7/8”, 31/32”, 1-1/8” or 1-1/2” only
  • Case: Measures 1” x 5-13/16” x depth. Depth varies by backset (see table on catalog page). Steel with corrosion-resistant plating.
  • Latchbolt: 1/2” x 1” x 1/2” throw. All metal with hardened steel internal pins. Handing is reversible without special tools.
  • Auxiliary Bolt: All metal. Deadlocks latch bolt to prevent “loiding” or case-knife entry.
  • Strikes: Standard strike furnished is 4902-01 for flat jamb where door closes flush or nearly flush. Available separately: radius strike for opposite stile in paired doors; longer strike (4901) to cover slot strike of MS lock; long lip strikes for centerhung doors.
  • Cylinder Cam: Operable by any standard mortise cylinder with MS® cam, dimensioned as shown. Cylinders with MS® cams can be readily obtained from most cylinder manufacturers. See CYLINDERS for cylinder make, thumbturn and trim ring information.
  • Options: Backset, faceplate shape, strike, handing, and finish must be specified when ordering.
Manufacturer Adams Rite
SKU 4510-36-101-628
Installation Commercial
Origin USA
Unit of Measure Each
Base Material Aluminum
BAA Qualified Yes
Limited Warranty 5 Years
Finish 628/US28
Finish Description Satin Aluminum Clear Anodized
Finish Family Matte Silver


Function Narrow Stile Latch Lock
Cylinder Type Less Cylinder
Handing RH or LHR
Door Thickness 1 3/4" to 2"
Std. Latch Type Guarded Latch
Std. Latch Backset Dim 1 1/8"
Lock Face Size 6 7/8" x 1"
Bolt Projection 1/2"
Std. Strike Number 4901-01
Std. Strike Type Mortise
Std. Strike Height 4 5/8"
Std. Strike Width 1 9/16"
Dust Box Plastic
Screws Machine
Product Type Mortise Lock

Cylinder Mortise Handing Chart
