UltraLite Electric Strikes designed for use in aluminum, hollow metal or wood applications.
7400, 7401 Electric Strikes with 4-7/8" faceplates are designed for Adams Rite deadlatches or cylindrical locksets with 1/2" to 5/8" latch bolt projection.
- Fail-Safe/Fail-Secure: Field selectable at time of installation.
- Case: Approximately 1" x 3-3/8" x 1-1/16" deep.
- Strike Lip: Basic 7400 electric strike has a lip of proper length for 1-3/4" thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this configuration, lip extension kits are available. Not available on 7401.
- Strike Opening: 5/8" adjustable x 1-7/16" x 1/2" deep. Bolt retainer jaw is stainless steel. Strike accepts bolts of Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.
- Faceplate: Measures 1-1/4" x 4-7/8". 7400 has a flat faceplate; 7401 is radiused to match the nose on an inactive leaf in a pair of aluminum stile glass doors. Available in a wide range of architectural finishes.
- Voltage:
- Field selectable to match power source of 12, 16, or 24 VDC.
- 16 DC requires adapter (P/N VA 7400-16VDC)
- 4603 Rectifier is required to convert low voltage AC current to DC current of the same voltage. Please contact the factory when using AC mode.

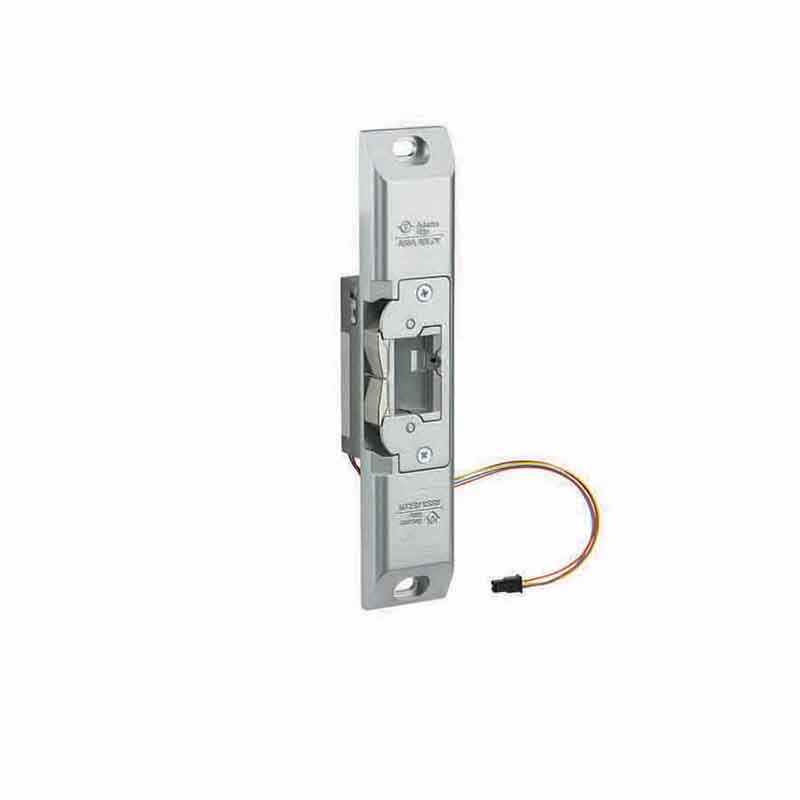

Adams Rite 74R1M130 Electric Strike, Rim Exit Devices, 3/4" Latchbolt, 12, 16, 24 VAC/DC, (VA7400-16VDC required for 16VDC Operation) Fail Safe/Fail Secure, Monitored, Aluminum Finish
74R1M130 Adams Rite Electric Strike For use in aluminum jambs and stiles. Opens electrically under 35 lbs. of preload. Electric Strike, Rim Exit Devices, 3/4" Latchbolt, 12, 16, 24 VAC/DC, (VA7400-16VDC required for 16VDC Operation) Fail Safe/Fail Secure, Monitored, Aluminum
