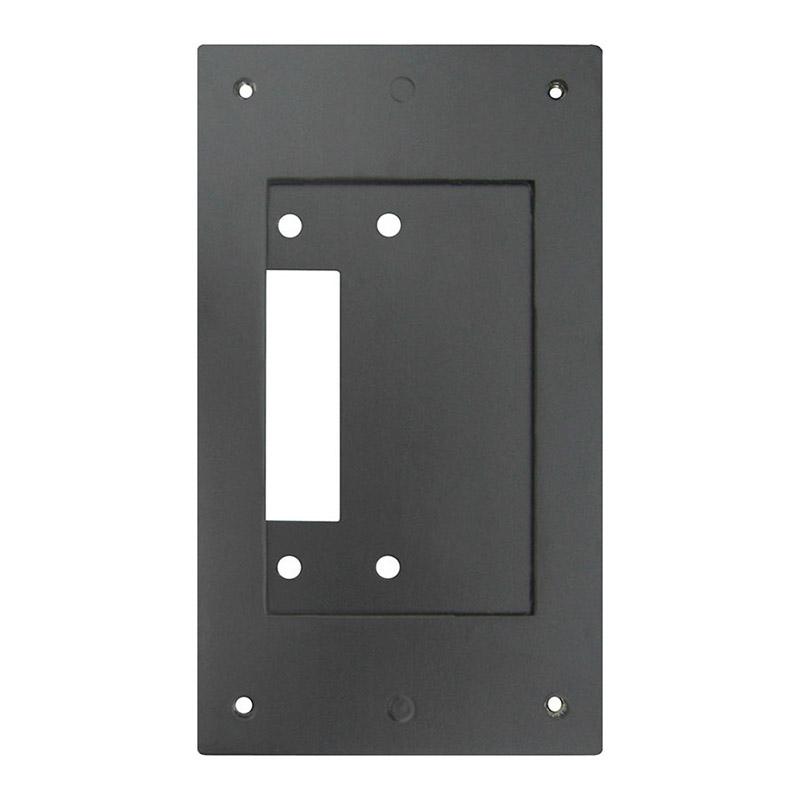

Aiphone JK-MB Mullion Mount Bracket For The JF-DV/JK-DV

Aiphone JK-MB Intercom Mullion Mount Bracket For The JF-DV/JK-DV PanTilt Zoom system with open voice color video. The JK Series is a PanTilt Zoom, open voice color video intercom system. At 170 degrees, the camera offers nearly twice the viewing width as conventional video intercoms

JK Hands-Free Color Video System
PanTilt Zoom system with open voice color video.
The camera offers nearly twice the viewing width as conventional video intercoms and has master stations that feature picture memory.

Power Source: 18V DC - Use PS-1820UL
Calling: Chime, image, and audio approx. 45 sec.
Communication: AUTOMATIC (hands-free) - to activate, momentarily push TALK button MANUAL (push-to-talk/release-to-listen) - to activate, push TALK button for 1 sec. or until talk LED turns on
Video Monitor: 3-1/2 direct-view TFT color LCD
Scanning Line: 525 lines
Minimum illumination: 5 Lux at 1'-5/8" distance
Night Viewing: Up to 1-5/8" from the camera, with white LED projected, background beyond 1'-5/8" cannot be seen
Door Release: Contact rating: 24V AC/DC, 500mA Use RY-18L for larger contact rating
Wiring: Door to master: 2-cond., mid-cap, solid, non-shielded Master to sub: 4-cond., mid-cap, solid, non-shielded
Distance: Door to farthest master/sub-master: 165(22AWG) 330(18AWG) Master to IER-2: 245(22AWG) 490(18AWG)
Wire Type: Master to door: Aiphone #871802 Between masters/sub: Aiphone #871804
