Air Louver DL8-A-95.25" CapxCapAst-BZ-RH Set, [2] Beveled Cap Astragals Right Handed 95 1/4" length Mineral Bronze Finish

  • SKU: DL8A9525CapxCapAstBZRHSet
Air Louver DL8-A-95.25" CapxCapAst-BZ-RH Set,
DL8A925 Door Image
DL8A9525 Drawings
Air Louver DL8-A-95.25" CapxCapAst-BZ-RH Set,
DL8A925 Door Image
DL8A9525 Drawings
All AIR LOUVERS Products

Air Louver DL8-A-95.25" CapxCapAst-BZ-RH Set, [2] Beveled Cap Astragals Right Handed 95 1/4" length Mineral Bronze Finish

  • SKU: DL8A9525CapxCapAstBZRHSet
$378.00/ea
Available (2‑3 Weeks)
2-3 Weeks Lead Time

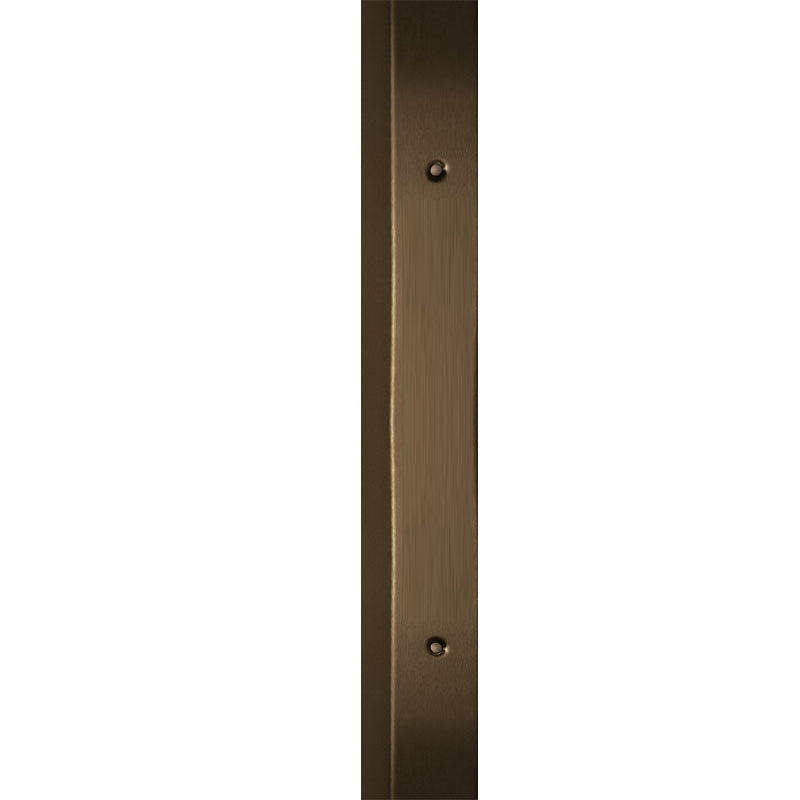

Air Louver DL8-A-95.25" CapxCapAst-BZ-RH Set, is a set of [2] 95 1/4" length Beveled Cap Astragals, that are handed in Right Hand, and come in Mineral Bronze Finish.

DL Series - Latch-Side Door Edges

Protect your wood, composite, or metal doors from carts and equipment in high-traffic areas with door edges. Latch side door edge guards protect the exposure of the door when open.

Material:   20 gauge cold rolled steel or 20 gauge 304 stainless steel #4 finish
Optional Astragal Material:  18 gauge cold rolled steel
Dimensions:  1-3/4" x 1"
Maximum Length: 108”
Door Thickness:  1-3/4"
Standard Finish:  Mineral Bronze
Optional Powder Coat Finishes:  Gray, Black, Flat Black, White, Silver, Brass, Sand, AMS Beige, SC Beige

Ratings:

 Warnock Hersey listed and labeled (upon request) for 90 minutes up to 108" maximum length per NFPA 252, UL10B, CAN/ULC S104, UL10C.




Product Cut Sheet
