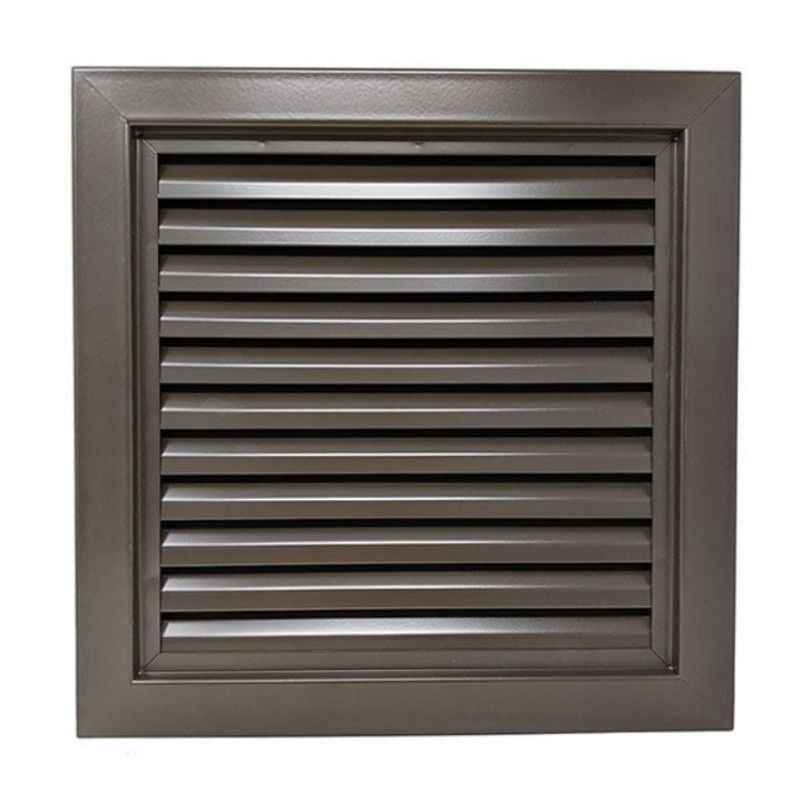

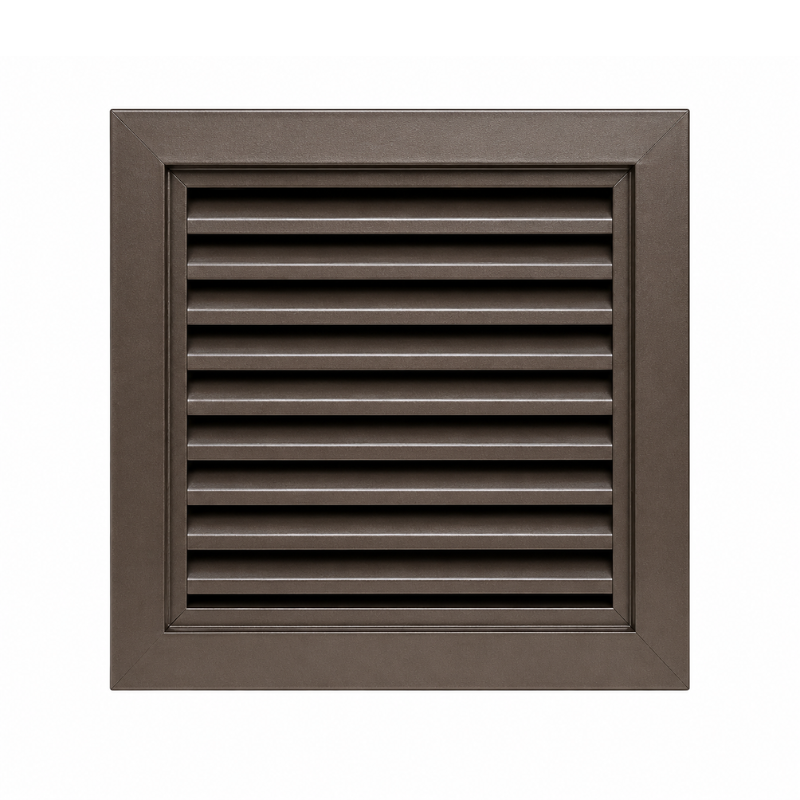

Air Louvers 800A1-BZ Metal Door Louver with Inverted "Y" Blades Self-attaching,  Powder Coat Bronze Finish

The product Image Does Not Reflect The Actual Size Of This product, All Product Sizes Are Width x Height See the Product Document Cut Sheet For Details and Specifications and Actual Dimensions Of This product.

Inverted "Y" Blades Recommended for Schools, Class "A" and Institutional Buildings with Non-Vision Construction and 4 Mounting Options

Material: 18 gauge CRS frame. Min size 6" x 4 Max 48" x 80".

Louvers: Inverted "Y" blades with 1" blade spacing are attached by interlocking construction to the 1" deep, welded frame. Non-vision. Multiple sections can be combined for larger sizes.

800A1 Frame: Self-attaching frame with 1-1/4" trim, mitered, and welded corners. Screws fasten through the frame into the louver core, leaving the corridor side of the frame free of fasteners.

Door: 1-3/4" Any Style. Door cutout = order size.
1 3/8"-1 3/4" - 800CORE, 800C, 800A.
