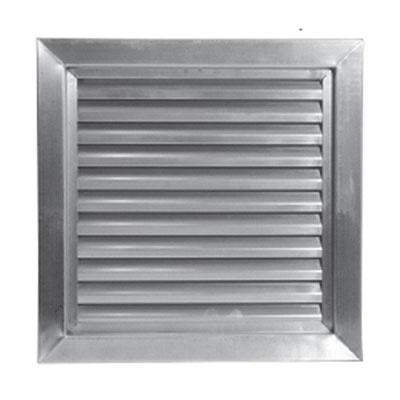

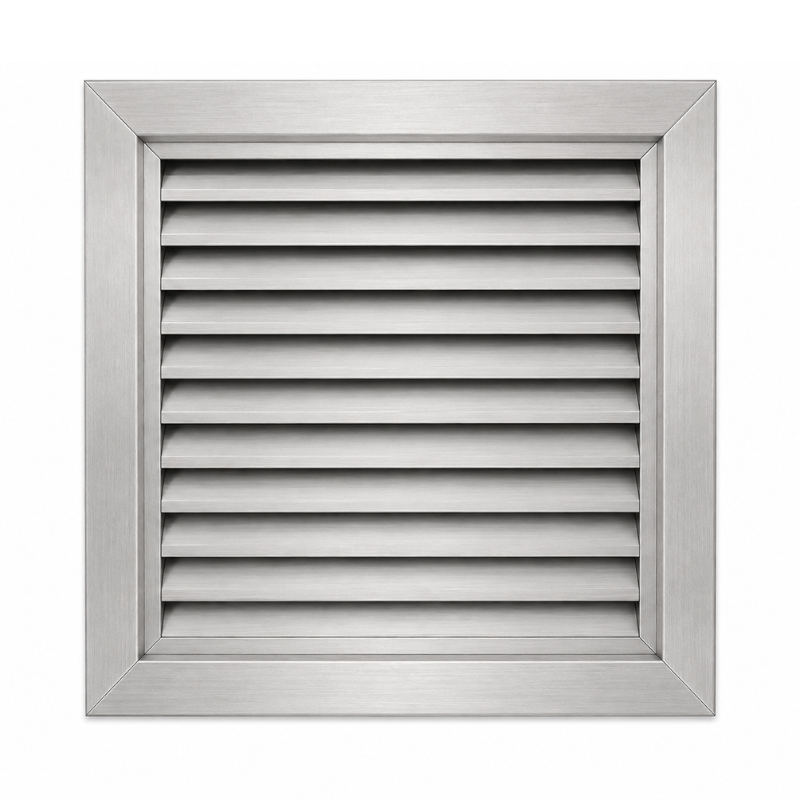

Air Louvers 800A1-SS Stainless Steel Door Louver with Inverted "Y" Blades Self-attaching, 20 gauge stainless steel, #4 finish
The product Image Does Not Reflect The Actual Size Of This product, All Product Sizes Are Width x Height See the Product Document Cut Sheet For Details and Specifications and Actual Dimensions Of This product.
Inverted "Y" Blades Recommended for Schools, Class "A" and Institutional Buildings with Non-Vision Construction and 4 Mounting Options
Material: 20 gauge blades. Min size 6" x 4 Max 48" x 80".
Louvers: Inverted "Y" blades with 1" blade spacing are attached by interlocking construction to the 1" deep, welded frame. Non-vision. Multiple sections can be combined for larger sizes.
800A1 Frame: Self-attaching frame with 1-1/4" trim, mitered, and welded corners. Screws fasten through the frame into the louver core, leaving the corridor side of the frame free of fasteners.
Door: 1-3/4" Any Style. Door cutout = order size.
1 3/8"-1 3/4" - 800CORE, 800C, 800A.
| Brand |
Air Louvers
|
| Free Flow Area |
50% Free Area
|
| Material |
Stainless Steel
|
| Fasteners |
Phillips head screws #8 x 3/4" – Included
|
| Fire Rating |
None
|
| Door Thickness |
1-3/4"
|
| Warranty |
5 Year
|
| Buy American Act Compliance |
Meets Buy Amercian Act – Made in USA
|
