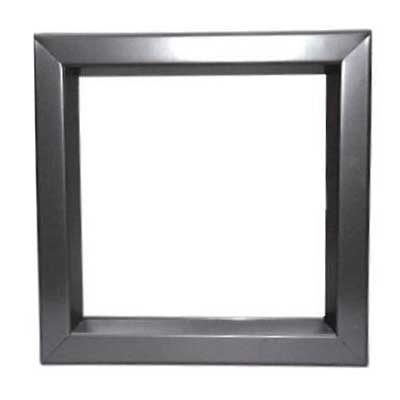

Air Louvers VLFEZ Beveled Vision Lite For 3/16'' to 1/4'' Glass, Self-Attaching, Bronze Finish. [Excludes Glass]

Visible Glass Is 2" Less Order Size. See Cut Sheet

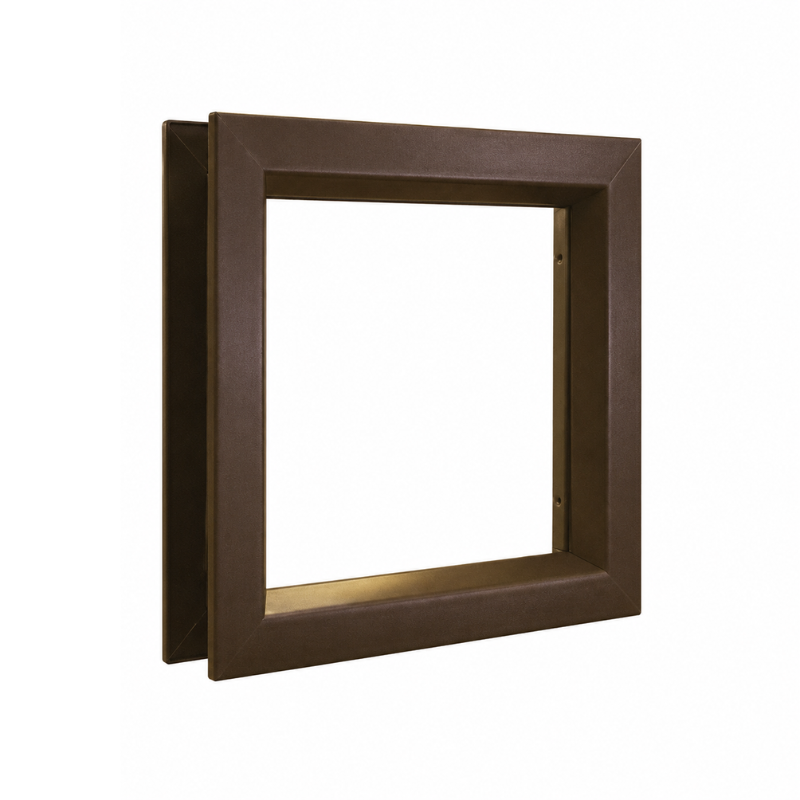

Air Louvers VLFEZ Beveled Vision Lite Bronze Finish For 3/16'' to 1/4'' Glass, Self-Attaching, The VLFEZ Beveled Vision Lite CRS Mineral Bronze Standard Powder Coat Finish

***Glass Not Included***Furnished Standard For 1 3/4" Thick Doors

Self-Attaching, Beveled Vision Lite with Single Side Fasteners for Fire Rated Doors for 3/16'' to 1/4'' Glass

Material: 20 gauge CRS frame. Min Size 3" x 3", Max 60" x 104". See Fire Rating Below.

Construction: 1-1/4" trim, with mitered and welded corners. Continuous glass retainer, countersunk mounting holes in the bevel on the non-corridor side.

Door: For 1-3/4" door. For other sizes, see VLFIG and VLFEZIG.

Fasteners: #8 x 1" flathead Phillips SMS.

Glass: 3/16" - 1/4" glazing to be ordered separately from Air Louvers Glazing Section. Use fire-rated glazing with Warnock Hersey (WHI) or UL classification markings for fire-rated applications. Visible light is 2" under rough opening size. Glass size is 1" under order size. See VLFEZIG for thicker glazing.

Fire-Rated Air Louvers Glazing to fit this vision frame: WS, PYRO, PPF, KFRF.

Fire-Rating, Testing & Listings: When installed in a properly rated and approved door, ratings up to 3 hours can be achieved, depending on the glazing used. See glazing ratings for maximum exposed area. Tested and Listed for UL 10C and Criteria of UBC 7-2 Positive Pressure. See detailed installation instructions.

UBC 7-2 Installation: See detailed installation instructions.
