Alarm Controls AES200 Electric Strike 32D Stainless Steel Faceplate

  • SKU: AES200

Alarm Controls AES200 Electric Strike 32D Stainless Steel Faceplate

  • SKU: AES200
Sale price$406.00/ea
In Stock
In Stock

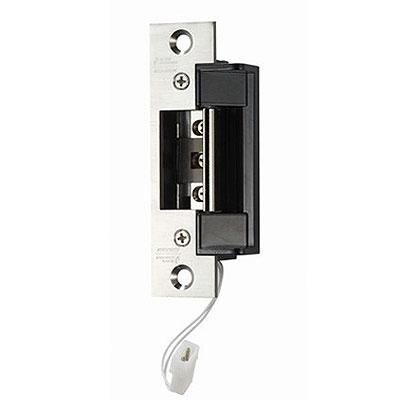

Alarm Controls AES200 Electric Strike 32D Stainless Steel Faceplate

Designed for medium-duty applications, the all-in-one Alarm Controls AES2-200 offers variable voltage and field selectable fail secure/fail-safe operation. Deep latch accommodates cylindrical locksets with 5/8" throw in steel, wood, or aluminum frames. Easy to install and connect.

  • BHMA Grade 2
  • 1000 lb. static strength
  • Static strength 70 ft-lbs. Dynamic strength endurance rating 500,000 UL tested, 1,500,000 factory tested
  • Strike depth 1-1/2"
  • Field selectable, fail-safe/fail secure
  • 5/8" throw
  • Adjustable keeper
  • Strike monitored with SPDT (1 Form C), dry contacts
  • Field selectable, fail-safe/fail secure
  • Universal 12 through 24VAC or VDC input
  • Fully reversible for right or left-hand doors
  • The mounting kit includes two 4-7/8" 32D stainless steel faceplates (one round corner and one square corner)
  • Horizontally adjustable, pre-load capable
  • Built-in buzzer sounds when voltage is applied
  • Current draw 12 VAC 200mA, 24 VAC 70mA
  • 7-7/16" round corner strike plate available. Model number STR00004
