Technical Specs
| Lock Platform | Cylindrical Lock |
| Reader Technology | Keypad Only |
| Keypad Type | Electronic |
| # Users | 2000 |
| Cylinder Type | Conventional Cylinder |
| Door Thickness | 1-5/8 In. to 1-7/8 In. |
| Latch Backset Dimension | 2-3/4 In. |
| Strike Type | T-Standard and ASA |
| Power | Battery Pack |
| Programmer | Optional |
| Software | Optional |
| Product Type | Cylindrical Locks with Keypad Trim |
Product Specs
| Manufacturer | Alarm Lock |
| SKU | DL4100 US26D |
| Grade | Grade 1 |
| Installation | Commercial |
| Unit of Measure | Each |
| Base Material | Brass or Bronze |
| Limited Warranty | 2 Years |
| Fire Rated | 3 Hours {A} |
| Finish | 626/US26D |
| Finish Description | Satin Chrome |

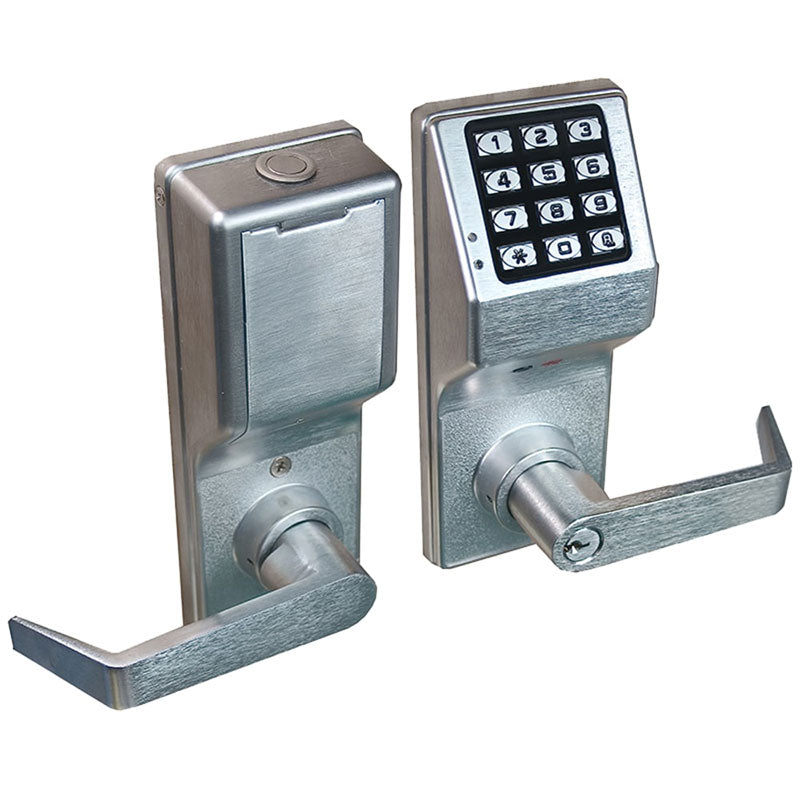

Alarm Lock DL4100-26D Lock Pushbutton Cylindrical Door Lock, allows 2000 Users, has a 40,000 Event Audit Trail, is Weatherproof, with a Straight Lever and comes in Satin Chrome Finish.
DL4100 Privacy Cylindrical Pin Locks
Standalone Trilogy® locks with privacy/lock down pushbutton on inner door (mortise & cylindrical pin or pin/prox models).
The DL4100 Series is similar to the DL3200 features plus many other additional features.
- Interior LED on the inside housing indicates when the privacy session is active
- Rest assured knowing that you are safe within the room, while locking out unauthorized users.
- 2000 PIN or PIN/Prox user codes; 500 scheduled events; 40,000 audit trail
- Privacy Pushbutton – Push button on inside door to temporarily lock-out keypad codes (programmable option)
- Occupied and multi-status LED indicator, flashes when privacy session is active
- Self-stick instructional signage, supplied (bilingual)
- Keypad or PC programming/reporting
- Right- or left-hand, classroom or deadbolt function models
- 1-3/8” mortise cylinder & ASA strike, matching function supplied, only with 4500 Series
- 5AA battery-pak operated; 60,000 cycles, typical
- 3 Architectural finishes (US3 polished brass, 26D satin chrome, 10B duronodic)
- Weatherproof -31˚ to +151˚F (-35˚ to +66˚C)
