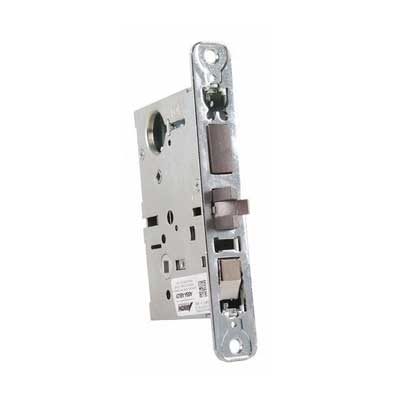

Arrow BM11LB Lock Body Only, Function 11-Apartment/Front Door, ANSI Function F12 - Entry Office. Non-Handed, Field Reversible.

• Handing: Handed; field reversible. The lockset can be re-handed without disassembling the lock case.

• Door Thickness: 1-3/4" (4mm) standard. Optional door thickness available; consult factory.

• Backset: 2-3/4" (70mm).

• Lockcase: Heavy gauge steel, with zinc dichromate finish for corrosion resistance. 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm).

• Armored Front: Heavy gauge steel, 8" (203 mm) x 1-1/4" (32mm) x 3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).

• Faceplate: Wrought brass or bronze, attached by machine screws to lockcase front.

• Latchbolt: Stainless steel, 2 piece mechanical with anti-friction insert. 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw.

• Auxiliary Latchbolt: 9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking.

• Deadbolt: One-piece stainless steel, 19/32" (15mm) x 1 1/4" (32mm) x 1" (25mm) throw.

• Hub: Lever: nickel steel, 5/16" (8mm).

• Spacing: Center to center, hub to cylinder: 3-5/8" (92mm).

• Center to center, hub to turnpiece: 2-7/16" (62 mm).

• Strike: Wrought brass or bronze, ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) 1-1/8" (29mm) lip to center. Optional strikes, lip lengths and ANSI wrought strike box available.

• Keys: Two nickel silver standard.

• Keying Features Available:

  • Master keying

  • Construction master keying

  • Visual key control

  • Concealed key control

  • High security cylinder

  • Interchangeable core (IC) - Pointe, Pointe Flex

• Warranty: Five-year limited.
