Arrow D61 3 Deadbolt, Single Cylinder, 2-3/4" Backset, Standard A Keyway, KR Keyed Random, US3-605 Bright Brass

  • SKU: D613

Arrow D61 3 Deadbolt, Single Cylinder, 2-3/4" Backset, Standard A Keyway, KR Keyed Random, US3-605 Bright Brass

  • SKU: D613
Sale price$229.00/ea
In Stock
In Stock

Arrow D61 3 Deadbolt, Single Cylinder, 2-3/4" Backset, Standard A Keyway, KR Keyed Random, US3-605 Bright Brass

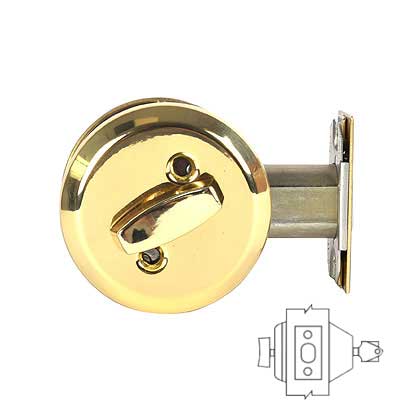

Arrow D61 3 Deadbolt lock, has a Single Cylinder and comes in Bright Brass finish. Arrow D Series deadlocks are engineered to perform under the most extreme conditions where security is critical. Our Grade 1 extra heavy duty deadlock surpasses the demands of industrial, institutional and commercial applications.

  • Housing–Two-piece housing, with free-spinning outer ring to prevent wrenching. Concealed mounting screws are standard on double cylinder functions. Deadbolt–1" (25.40mm) throw, solid steel deadbolt with hardened, free spinning, steel pin & insert.
  • Backset– 2-3/4" (69.85mm).
  • Deadbolt fronts–2-1/4" (57.15mm) x 1" (25.40mm) standard for 2-3/8" (60.32mm) backset, 2-1/4" (57.15mm) x 1-1/8" (28.57mm) standard for 2-3/4" (69.85mm) backset. Drive-in deadbolts are available.
  • Doors–1-3/8" (34.925mm) to 1-3/4" (44.45mm) thick standard.
  • Strikes–Supplied standard with the #346 wood frame strike and BX91D strike reinforcement. The #345 metal frame strike is optional.
  • Handing–All functions are reversible.
  • Cylinder, Standard–Solid brass, Arrow “A” keyway, 6 pin cylinder. Supplied with two nickel silver keys. Available in Schlage CS keyway and other competitive keyways.
