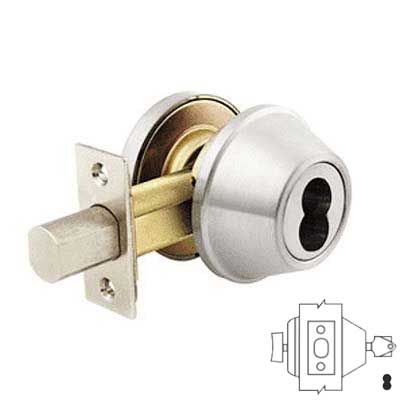

Arrow D71 IC1 26D Deadbolt, Single Cylinder, SFIC Prep, Less Core, 2-3/4" Backset, US26D-626 Satin Chrome

  • SKU: D71IC126D

Arrow D71 IC1 26D Deadbolt, Single Cylinder, SFIC Prep, Less Core, 2-3/4" Backset, US26D-626 Satin Chrome

  • SKU: D71IC126D
Sale price$388.00/ea
In Stock
In Stock

Arrow D71 IC1 26D Deadbolt, Single Cylinder, SFIC Prep, Less Core, 2-3/4" Backset, US26D-626 Satin Chrome

Arrow D71-IC1 26D Deadbolt, has a Single Cylinder, SFIC Prep, is Less Core, and comes in Satin Chrome Finish.

The Arrow D series is a Grade 1 extra heavy duty deadlock that surpasses the demands of industrial, institutional and commercial applications.

  • Housing–Two-piece housing, with free-spinning outer ring to prevent wrenching. Concealed mounting screws are standard on double cylinder functions. Deadbolt–1" (25.40mm) throw, solid steel deadbolt with hardened, free spinning, steel pin & insert.
  • Backset– 2-3/4" (69.85mm).
  • Deadbolt fronts–2-1/4" (57.15mm) x 1" (25.40mm) standard for 2-3/8" (60.32mm) backset, 2-1/4" (57.15mm) x 1-1/8" (28.57mm) standard for 2-3/4" (69.85mm) backset. Drive-in deadbolts are available.
  • Doors–1-3/8" (34.925mm) to 1-3/4" (44.45mm) thick standard.
  • Strikes–Supplied standard with the #346 wood frame strike and BX91D strike reinforcement. The #345 metal frame strike is optional.
  • Handing–All functions are reversible.
  • Cylinder Options–Accepts 6 or 7 pin, small format, interchangeable cores. Supplied less cores. Will accept Best or Falcon type cores (except the E41).
