Description

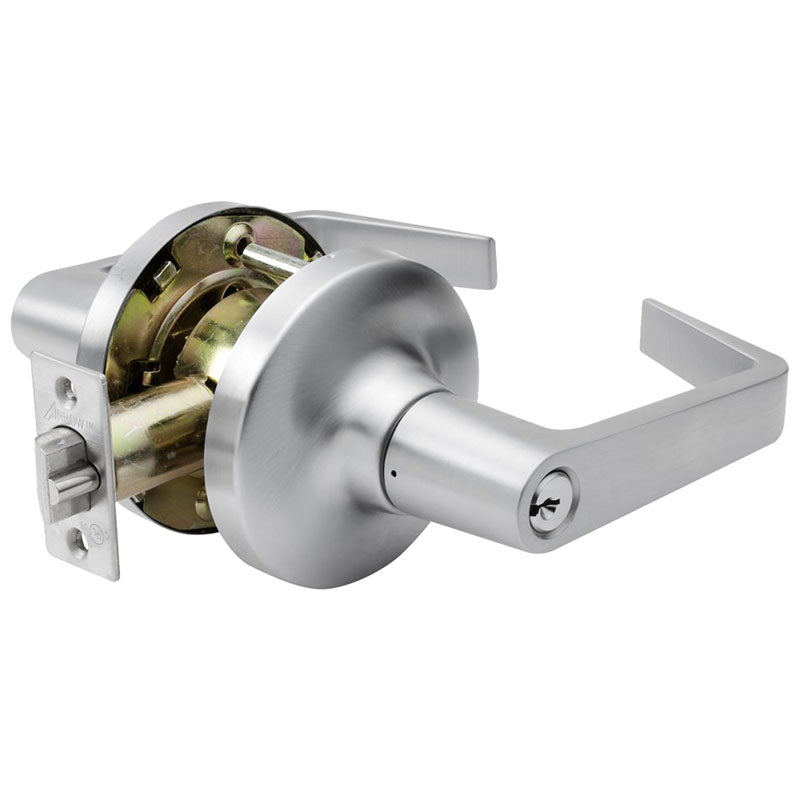

The Arrow GL97-SR-26D is a Classroom Intruder Function Lever Lock, with a Sierra Lever, has a Conventional Cylinder, with an A Keyway, has a 2 3/4" Backset, a 4 7/8" Strike, and comes in Satin Chrome Finish.
Intruder Classroom - F110
- Deadlocking latch bolt operated by lever from either side
- Key either inside or outside locks or unlocks outside lever
- Inside lever always operates latchbolt
The Arrow GL Series is a grade 1 heavy-duty lever lock that is ADA compliant and offers an economically pleasing solution for ADA compliance.
Product Specs
| Manufacturer | Arrow |
| SKU | GL97-SR-26D |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | United States |
| Unit of Measure | Each |
| Base Material | Brass, Bronze |
| UL Listing Type | BHMA A156.2, Series 4000, Grade 1, UL Listed |
| ANSI Number | F110 |
| Limited Warranty | 5 Year Warranty |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| Finish | 626/US26D |
| Finish Description | Satin Chrome |
| Finish Family | Matte Silver |
Technical Specs
| Function | 97 Intruder Classroom |
| Function Family | Classroom |
| ANSI Function |
F110 - Classroom |
| Lever/Knob Design | Sierra Lever |
| Lever/Knob Design Family | Straight Return Lever |
| Rose/Escutcheon Design |
3-9/16" Rose Diameter |
| Rose/Escutcheon Dimensions | 3-9/16" |
| Cylinder Type |
Conventional Cylinder |
| Num Pins | 6 |
| Key(s) | Cut |
| Num of Keys | 2 |
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Std. Latch Number | G71 |
| Std. Latch Type | Deadlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 306 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
