Description

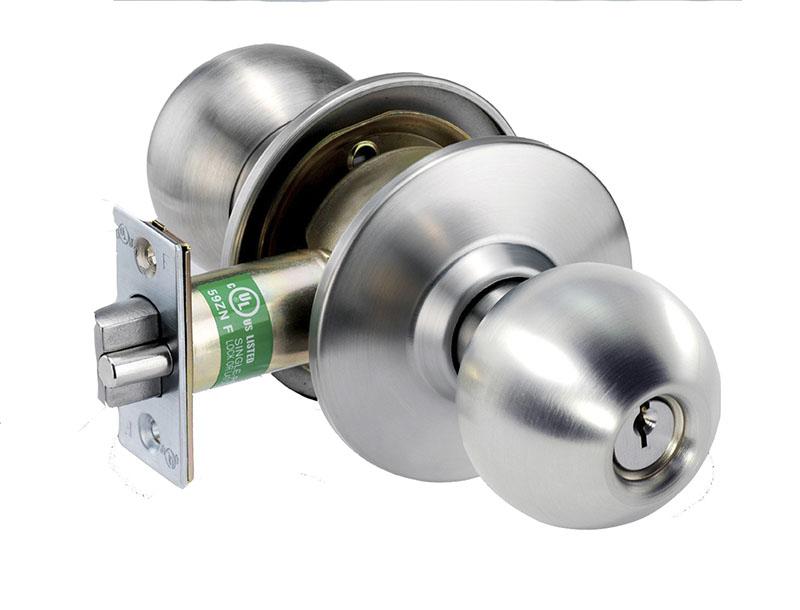

Arrow HK12 BB 32D Storeroom Knob Cylindrical Lock, Ball Knob, Arrow A Keyway, Non-Handed, Satin Stainless Steel
The HK series Grade 1 Cylindrical Knob lock is designed and tested for the most robust applications for Grade 1 knob locksets. Backed by the Arrow 10 year warranty and Certified to BHMA Grade 1 it is the worry free solution when a Grade 1 knob lock is needed.
- Lock Chassis – Cold rolled steel with zinc dichromate finish for corrosion resistance. Latch retractor is precision stainless steel. Requires standard 2-1/8" (53.97mm) bore through door.
- Door Thickness – 1-3/8" (35mm) to 2" (50.80mm)
- Latch – Stainless steel with 1/2" (12.7mm) throw. Latch housing is steel, zinc dichromate finish for corrosion resistance. 1" (25.4mm) bore in edge of door required.
- Latch Front – Brass or stainless steel, 2-1/4" (57.15mm) x 1-1/8" (28.57mm), beveled 1/8" (3.17mm) in 2" (50.8mm)
- Handing – Reversible.
- Strike – Brass or stainless steel. ANSI A115.2,4-7/8" (123.82mm) x 1-1/4" (31.75mm) curved lip standard with a 1-1/4" (31.75mm) lip to center dimension.
- Cylinder, Standard – Solid brass 6 pin cylinder supplied with two 6 pin nickel plated brass keys. Available in Arrow AR or Schlage CS keyway.
- Cylinder Options – Interchangeable core-lockset prepared for use with 6 or 7 pin interchangeable core available. SFIC format. Supplied less core. Suffix "IC" to design.
Product Specs
Vendor | Assa Abloy |
Manufacturer | Arrow |
SKU | HK12-BB-630 |
Grade | Grade 1 |
Installation | Commercial |
Origin | China |
Unit of Measure | Each |
Base Material | Stainless Steel |
UL Listing Type | BHMA A156.2, Series 4000, Grade 1, UL Listed |
Limited Warranty | 10 Year Warranty |
Fire Rated | 3 Hours {A} |
Burglar Rated | No |
Finish | 630/US32D |
Finish Description | Satin Stainless Steel |
Finish Family | Matte Silver |
Technical Specs
Function | 12-Storeroom |
Function Family | Storeroom |
Lever/Knob Design |
|
Lever/Knob Design Family | Ball Knob |
Rose/Escutcheon Design |
3-1/4" Rose Diameter |
Rose/Escutcheon Dimensions | 3-1/4" |
Cylinder Type |
Conventional Cylinder |
Num Pins | 6 |
Key(s) | Cut |
Num of Keys | 2 |
Handing | Non-handed |
Door Thickness | 1-3/8" to 2" |
Std. Latch Number | Q71 |
Std. Latch Type | Deadlatch |
Std. Latch Backset Dim | 2-3/4" |
Latch Bore Diameter | 1" |
Lock Face Size | 1-1/8" x 2-1/4" |
Bolt Projection | 1/2" |
Bore Hole Diameter | 2-1/8" |
Std. Strike Number | 306 |
Std. Strike Type | ANSI Strike |
Std. Strike Height | 4-7/8" |
Std. Strike Width | 1-1/4" |
Screws | Wood/Machine Screws |
Product Type | Cylindrical Lock |
