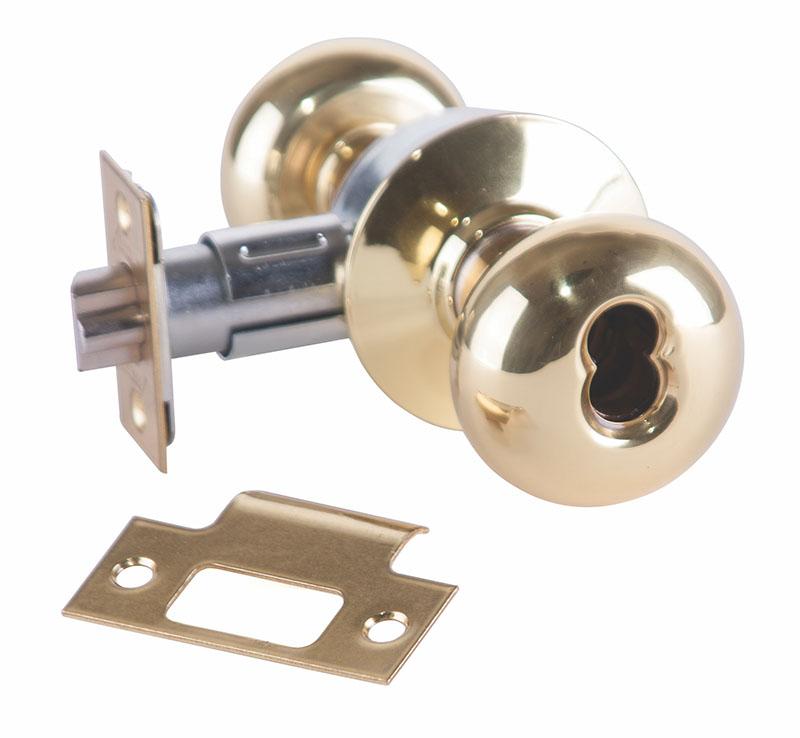

Arrow MK12 TA 3 IC  Storeroom Knob Cylindrical Lock, Tudor Knob, SFIC Prep Less Core, T-Strike, Bright Brass, Non-Handed.

MK Series Grade 2 Cylindrical Knob Locks

The Arrow MK Series has a clear design and is a simple solution to accessibility requirements.

The MK Series is available in several finishes and functions that make them ideal for commercial applications where heavy-duty grade one hardware may not be necessary.

• Lock Chassis – Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97mm) bore through door.
• Backset – 2-3/4" (69.85mm)
• Door Thickness – 1-3/8" (34.92mm) to 1-3/4" (44.45mm). Latch – Brass with 1/2" (12.7mm) throw.
• Latch housing is steel, with a zinc dichromate finish for corrosion resistance. 7/8" (22.225mm) bore in the edge of the door is required.
• Latch Front – Brass, bronze or stainless steel. Standard faceplate for 2-3/8” (60.32.mm) backset measures 2-1/4” (57.15mm) x 1” (25.40mm) with a flat front, for 2-3/4” (69.85mm) backset standard faceplate measures 2-1/4” (57.15mm) x 1-1/8” (28.57mm) with beveled front 1/8” (3.17mm) in 2” (50.8mm).
• Strike – Brass, bronze or stainless steel. Standard “T” strike measures 2-3/4" (69.85mm) x 1-1/8" (28.57mm). Optional ANSI A115.1 strike measures 4-7/8" (123.82mm) x 1-1/4" (31.75mm). All strikes have a 1-1/4" (31.75mm) lip to center dimension.
• Handing– Reversible.
• Cylinder, Standard – Solid brass 6 pin cylinder with Arrow “A” keyway, keyed to 5 pins for stock. Can be master keyed, grandmaster keyed and construction master keyed. Conventional cylinders are also available in a variety of competitive manufacturer’s keyways. Supplied with two 5-pin brass keys for stock. Available in Schlage CS keyway and other competitive keyways.
