Description

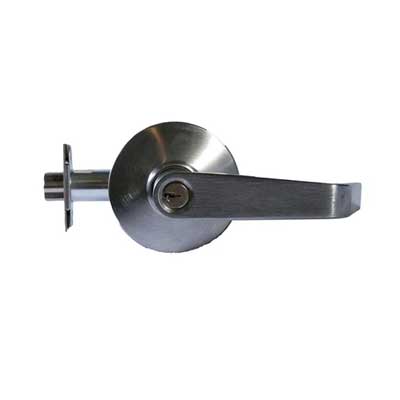

The Arrow MLX11-SR-26D is an Entrance Lever Lock, has a Sierra Lever, comes with a Key in Lever Cylinder, with an A Keyway, is Non-Handed, has a 2 3/4" Backset, a 4 7/8" Strike, is Grade 2 and comes in Satin Chrome.
Entrance or Office - F109
- Rigid lever
- Latchbolt operated by lever either side except when outside lever is locked by turn-button inside
- When outside lever is locked, latchbolt operated by key outside or turning inside lever
- Inside button must be manually released
The MLX Series is the perfect solution for replacing or upgrading lockets in commercial applications. The MLX Series is a robust Grade 2 lockset featuring a Free Wheeling Lever for abuse resistance, two screw lockset install for quick installation, and a 10 Year Mechanical Warranty. The perfect solution for replacing or upgrading lockets in commercial applications.
Product Specs
| Manufacturer | Arrow |
| SKU | MLX11-SR-26D |
| Grade | Grade 2 |
| Installation | Commercial |
| Origin | South Korea |
| Unit of Measure | Each |
| UL Listing Type | UL 10C |
| ANSI Number | A156.2, Series 4000, Grade 2 |
| Restrictions | None |
| BAA Qualified | No |
| Limited Warranty | 10 Years |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| ADA Compliance | Yes |
| Finish | 626/US26D |
| Finish Description | Satin Chrome |
| Finish Family | Matte Silver |
Technical Specs
| Function | 11 Entrance |
| ANSI Function |
F109 - Entry/Office |
| Lever/Knob Design | Sierra Lever |
| Lever/Knob Design Family | Straight Return Lever |
| Rose/Escutcheon Design |
3-11/32" Rose Diameter |
| Cylinder Type |
Key in Lever Cylinder |
| Keyway | A Keyway |
| Num Pins | 6 |
| Key(s) | Cut |
| Num of Keys | 2 |
| Handing | Non-Handed |
| Door Thickness | 1-3/8" - 1-3/4" |
| Std. Latch Type | Dead Latch (Guarded) |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 306 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Dust Box | None |
| Screws | Combination |
| Product Type | Cylindrical Lock |
