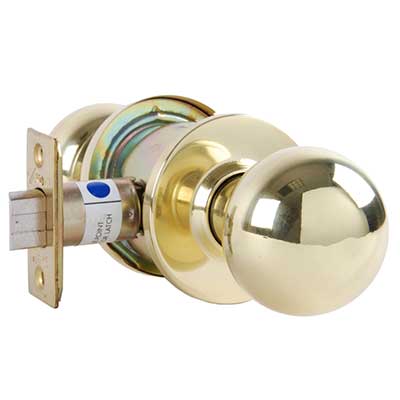

Arrow RK01-BD-03 Grade 2 Passage Cylindrical Lock, Ball Knob, Non-Keyed, Bright Brass Finish, US3/605 Non-handed

  • SKU: RK01BD3

Arrow RK01-BD-03 Grade 2 Passage Cylindrical Lock, Ball Knob, Non-Keyed, Bright Brass Finish, US3/605 Non-handed

  • SKU: RK01BD3
Sale price$100.00/ea
In Stock
In Stock

Arrow RK01-BD-03 Grade 2 Passage Cylindrical Lock, Ball Knob, Non-Keyed, Bright Brass Finish, US3/605 Non-handed

RK01-BD-03 Non-Keyed Passage Lock

The RK Series cylindrical locksets are an economical value for a variety of applications. Perfect for multi-family housing markets, as well as light commercial applications.
  • Construction – Cold-rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97mm) bore through door.
  • Backset – 2-3/8" (60.31mm)
  • Door Thickness – Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
  • Latch – Brass 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions.
  • Latch Front – 1" x 2-1/4" (25.40mm x 57.15mm) for 2-3/8" backset (60.32.mm) or 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
  • Exposed Trim – RK Roses are wrought brass 2-1/2" (63.5mm) diameter. Total projection from face of door is 2-3/4" (69.85mm).
  • Strike – T strike
  • Cylinder – Solid brass 6 pin. Arrow "A" keyway standard. Available in Schlage CS keyway and other competitive keyways.
  • Keys – 2 brass keys.
  • Handing – Non-handed.
  • Thru-bolts – Removable thru-bolts standard on RL Series.
  • Packaging– 10 per case.
  • Warranty – Five Year Mechanical Warranty
