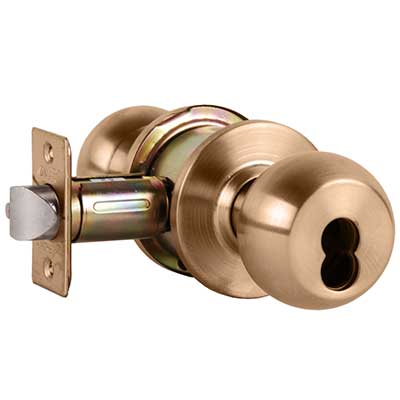

Arrow RK11-BD-10-IC Grade 2 Turn-Pushbutton Entrance Cylindrical Lock, Ball Knob, SFIC Less Core, Satin Bronze Finish, US10/612, Non-handed.
"SFIC" Accepts a Small Format Interchangeable Core, Furnished Less Core.
The RK Series cylindrical locksets are an economical value for a variety of applications. Perfect for multi-family housing markets, as well as light commercial applications.
RK11-BD-10-IC Grade 2 Turn-Pushbutton Entrance Cylindrical Lock
- Construction – Cold-rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97mm) bore through door.
- Backset – 2-3/8" (60.31mm)
- Door Thickness – Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
- Latch – Brass 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions.
- Latch Front – 1" x 2-1/4" (25.40mm x 57.15mm) for 2-3/8" backset (60.32.mm) or 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
- Exposed Trim – RK Roses are wrought brass 2-1/2" (63.5mm) diameter. Total projection from face of door is 2-3/4" (69.85mm).
- Strike – T strike
- Cylinder – Solid brass 6 pin. Arrow "A" keyway standard. Available in Schlage CS keyway and other competitive keyways.
- Keys – 2 brass keys.
- Handing – Non-handed.
- Thru-bolts – Removable thru-bolts standard on RL Series.
- Packaging– 10 per case.
- Warranty – Five Year Mechanical Warranty
