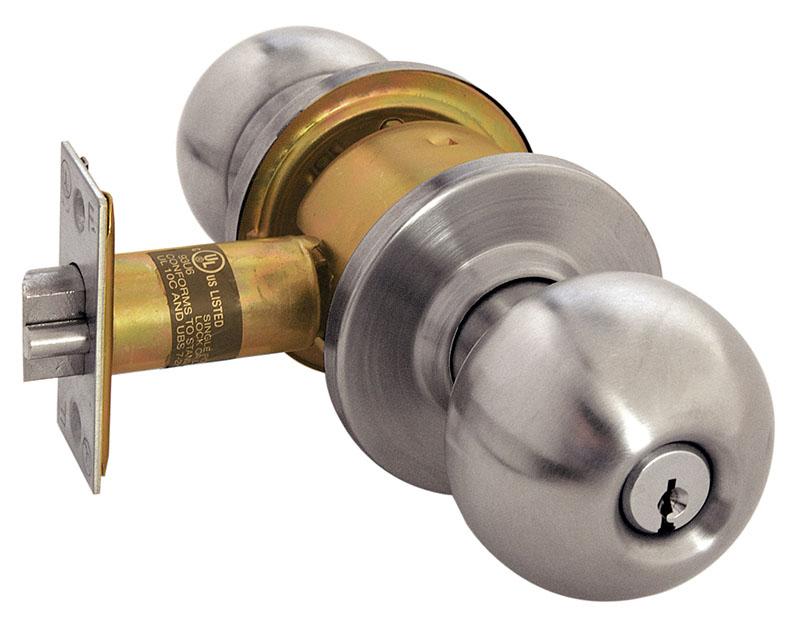

Arrow RK12-BD-32D-CS Grade 2 Storeroom Cylindrical Lock, Ball Knob, Conventional Cylinder Schlage C Keyway KR, Keyed Random, [2] Change Keys, Satin Stainless Steel Finish, US32D/630, Non-handed
The RK Series cylindrical locksets are an economical value for a variety of applications. Perfect for multi-family housing markets, as well as light commercial applications.
Arrow RK12-BD-32D-CS Grade 2 Storeroom Cylindrical Lock
-
Construction – Cold-rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97mm) bore through door.
-
Backset – 2-3/8" (60.31mm)
-
Door Thickness – Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
-
Latch – Brass 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions.
-
Latch Front – 1" x 2-1/4" (25.40mm x 57.15mm) for 2-3/8" backset (60.32.mm) or 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
-
Exposed Trim – RK Roses are wrought brass 2-1/2" (63.5mm) diameter. Total projection from face of door is 2-3/4" (69.85mm).
-
Strike – T strike
-
Cylinder – Solid brass 6 pin. Arrow "A" keyway standard. Available in Schlage CS keyway and other competitive keyways.
-
Keys – 2 brass keys.
-
Handing – Non-handed.
-
Thru-bolts – Removable thru-bolts standard on RL Series.
-
Packaging– 10 per case.
-
Warranty – Five Year Mechanical Warranty
